Part Details | AERIAL STORES LIFT TRUCK
1730-01-491-1557 A self-propelled, wheeled vehicle equipped with a power driven lifting boom. The boom is designed to be used with various support cradles and adapters. Primarily designed for loading munitions, fuel tanks, pylons, and special weapons onto military aircraft.
Alternate Parts: 1730PL0179933, 345322270009, 814105070, 8141050-70, 814105060, 8141050-60, 1730-01-491-1557, 01-491-1557, 1730014911557, 014911557
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 17 | OCT 15, 2001 | 01-491-1557 | 46467 ( TRUCK, LIFT, AERIAL STORES ) |

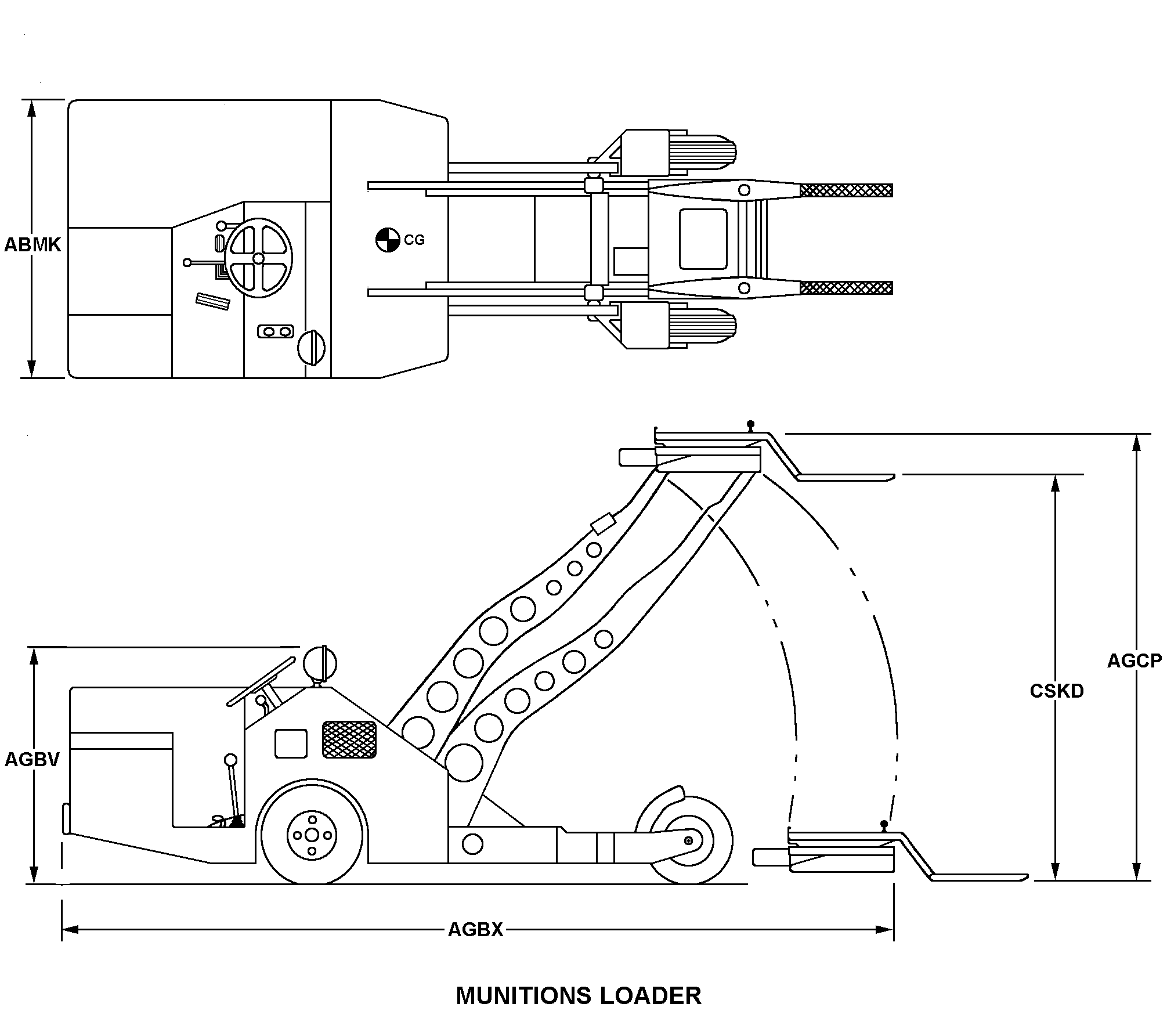

REFERENCE DRAWINGS & PICTURES
MUNITIONS LOADER
Cross Reference | NSN 1730-01-491-1557
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1730PL0179933 | 9009H | INSPEKTORAT WSPARCIA SIL ZBROJNYCH |
| 345322270009 | 0000V | NCB HUNGARY HONVEDSEGI EGYSEGESTERMEKKOD |
| 8141050-70 | 98752 | WARNER ROBINS AIR LOGISTICS CENTER |
| 8141050-60 | 98752 | WARNER ROBINS AIR LOGISTICS CENTER |
Technical Data | NSN 1730-01-491-1557
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | MUNITIONS LOADER |
| OVERALL WIDTH | 52.250 INCHES NOMINAL |
| OVERALL HEIGHT WITH FORKS IN LOWEST POSITION | 42.000 INCHES NOMINAL |
| OVERALL LENGTH WITHOUT FORKS | 121.000 INCHES NOMINAL |
| OVERALL HEIGHT WITH PLATFORM IN HIGHEST POSITION | 78.000 INCHES NOMINAL |
| LIFT HEIGHT OF FORKS | 71.7500 INCHES MAXIMUM |
| PRIME MOVER TYPE | GASOLINE ENGINE |
| VEHICULAR TURN RADIUS | 180.000 INCHES NOMINAL |
| MAXIMUM LOAD RATING | 3800.000 POUNDS |
| FORK/PLATFORM MAXIMUM FREE LIFT HEIGHT | 78.000 INCHES |
| LIFT MECHANISM TYPE | HYDRAULIC |
| LIFT ACTUATION METHOD | POWERED |
| STEERING TYPE | CRABBING |
| TRANSMISSION TYPE | AUTOMATIC |
| PRIME MOVER MANUFACTURER CODE AND MODEL NUMBER | 66289-VH4D |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | U.L. TYPE G |
| FUNCTIONAL DESCRIPTION | USED FOR LOADING MUNITIONS, FUEL TANKS PYLONS AND SPECIAL WEAPONS WEIGHING UP TO 3,000 LBS. ONTO MILITARY AIRCRAFT |
| TYPE/MODEL DESIGNATION | MJ-1C |
| RELATIONSHIP TO SIMILAR EQUIPMENT | SIMILAR TO 1730-01-123-7269 |
| REFERENCE DATA AND LITERATURE | T.O. 35D3-2-25-4 |
