Part Details | LEAF SPRING ASSEMBLY SHACKLE
2510-00-447-5903 An open link of various shapes with extended legs, usually having transverse holes in the legs to accommodate a retaining pin, bolt, bushing, or the like, or having threaded legs for a plate attachment, and having a connection facility opposite the legs so designed to attach a SPRING ASSEMBLY, LEAF to a rigid supporting hanger on a vehicle. Excludes SHACKLE and CLEVIS, ROD END.
Alternate Parts: 98116HX, 2510-00-447-5903, 00-447-5903, 2510004475903, 004475903
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | JAN 01, 1963 | 00-447-5903 | 22100 ( SHACKLE, LEAF SPRING ASSEMBLY ) |
REFERENCE DRAWINGS & PICTURES

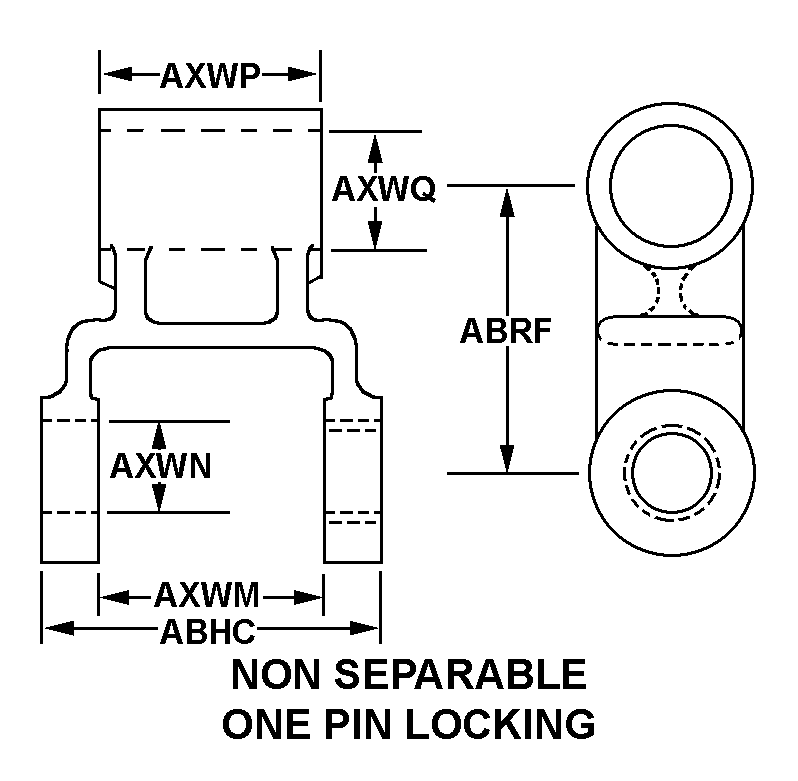

NON SEPARABLE ONE PIN LOCKING
Cross Reference | NSN 2510-00-447-5903
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 98116HX | 89346 | NAVISTAR INTL CORP TRUCK BR OHIOPLANT |
Technical Data | NSN 2510-00-447-5903
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | NON SEPARABLE ONE PIN LOCKING |
| OVERALL WIDTH | 4.750 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN HOLES | 3.500 INCHES NOMINAL |
| WIDTH BETWEEN LEGS | 3.000 INCHES NOMINAL |
| LEG HOLE DIAMETER | 1.110 INCHES NOMINAL |
| ATTACHING END WIDTH | 4.000 INCHES NOMINAL |
| ATTACHING END HOLE DIAMETER | 1.245 INCHES NOMINAL |
| FEATURES PROVIDED | BUSHING |
