Part Details | METAL MOLDING
2510-00-453-5363 A shaped piece of metal having a plane or curved surface, either sunk or projecting, used for ornamental or other application.
Alternate Parts: 2930004535363, 10865320, 2510-00-453-5363, 00-453-5363, 2510004535363, 004535363
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | APR 09, 1969 | 00-453-5363 | 04153 ( MOLDING, METAL ) |
REFERENCE DRAWINGS & PICTURES

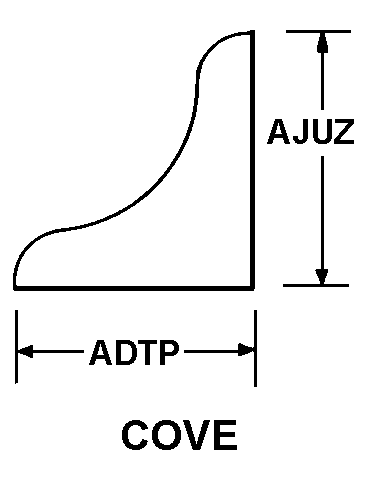

COVE
Cross Reference | NSN 2510-00-453-5363
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2930004535363 | SCY13 | E.C.A ETABLISSEMENTCENTRALD'APPROVISIONNEMENT DES |
| 10865320 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 2510-00-453-5363
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| FABRICATION METHOD | R$DAS |
| STYLE DESIGNATOR | COVE |
| ATTACHMENT FEATURE WIDTH | 2.810 INCHES NOMINAL |
| ATTACHMENT FEATURE HEIGHT | 4.810 INCHES NOMINAL |
| ISSUE FORM | SPECIFIC LENGTH |
| LENGTH | 5.310 INCHES NOMINAL |
| MOUNTING METHOD | HOLE |
| SPECIAL FEATURES | PRIMED PER SPEC TT-P-636 AND ENAMELED GLOSS BLACK PER SPEC TT-E-489 |
