NSN 2530-00-278-2248

Part Details | PNEUMATIC TIRE WHEEL

2530-00-278-2248 A wheel with an integral or removable rim designed to mount a pneumatic tire. Includes wheels without rims but designed to accommodate pneumatic tire rims. May include tire(s). Excludes WHEEL, LANDING GEAR.

Alternate Parts: 581082, 60130D3, 47610D1, 08407X, C44490, A14561, M4746724, M4746-7-24, M46101526, M4610-15-26, 602479, 914119, 914-119, 602479, 914119, 914-119, 82161B, 42579, 2508, 44490, GTB1015B, GTB1015A2, GTB1015A1, GTB1015A, GTB1015A, 52996, 3661241, 2155363, 3661241, 2155363, 3109024, 82161, 82161B, 82161, 3109238, 25497, 23978, 52996, 2508, 82161B, 44490, A181088, 14561, 666610, A0014561, 2530-00-278-2248, 00-278-2248, 2530002782248, 002782248

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
25JAN 01, 196300-278-224817959 ( WHEEL, PNEUMATIC TIRE )
REFERENCE DRAWINGS & PICTURES

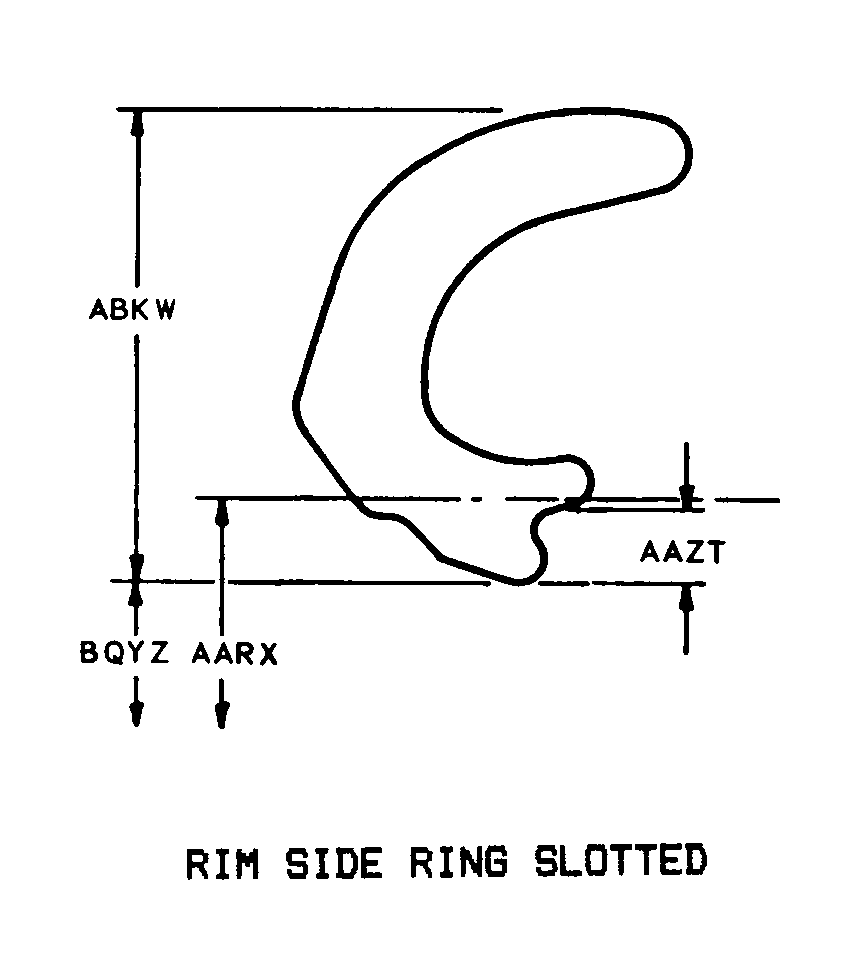

RIM SIDE RING SLOTTED

Cross Reference | NSN 2530-00-278-2248
Part Number Cage Code Manufacturer
58108200006ACF-BRILL MOTORS CO
60130D309386ALLIEDSIGNAL INCALLIEDSIGNAL BRAKING SYSTEMS-WHEEL
47610D109386ALLIEDSIGNAL INCALLIEDSIGNAL BRAKING SYSTEMS-WHEEL
08407X09386ALLIEDSIGNAL INCALLIEDSIGNAL BRAKING SYSTEMS-WHEEL
C4449009386ALLIEDSIGNAL INCALLIEDSIGNAL BRAKING SYSTEMS-WHEEL
A1456134623AM GENERAL LLC
M4746-7-240L8N4AMFS AMERICAN FLEET SERVICES
M4610-15-260L8N4AMFS AMERICAN FLEET SERVICES
60247912793AQUA-CHEM INCCLEAVER-BROOKS DIV
914-11912793AQUA-CHEM INCCLEAVER-BROOKS DIV
6024790EXU3AQUA-CHEM, INC.
914-1190EXU3AQUA-CHEM, INC.
82161B90023CENTRAL CAN CO INC
4257911743CHECKER MOTORS CORPORATION
250854108D & J PARTS INC
4449095019DANA CORPSPICER TRANSMISSION DIV
GTB1015B23040FORD MOTOR COFORD PARTS AND SERVICE DIV
GTB1015A223040FORD MOTOR COFORD PARTS AND SERVICE DIV
GTB1015A123040FORD MOTOR COFORD PARTS AND SERVICE DIV
GTB1015A23040FORD MOTOR COFORD PARTS AND SERVICE DIV
GTB1015A57526FORD MOTOR COMPANY
5299623705FRUEHAUF CORP
366124124617GENERAL MOTORS CORP
215536324617GENERAL MOTORS CORP
36612417X677GENERAL MOTORS LLCDBA GENERAL MOTORS
21553637X677GENERAL MOTORS LLCDBA GENERAL MOTORS
310902473830GERSTENLAGER CO THE
8216114234GREAT DANE TRAILERS INC
82161B41885HAYES WHEELS INTL INCAKRON OPNS
8216141885HAYES WHEELS INTL INCAKRON OPNS
310923881829HENDRICKSON STAMPINGDIV OF HENDRICKSON INTERNATIONAL
2549733116KELSEY-HAYES COWHEEL DRUM AND BRAKE DIV
2397833116KELSEY-HAYES COWHEEL DRUM AND BRAKE DIV
5299675460KRIEGER STEEL SECTIONS INC
25080ATF2L & L BOILER MAINTENANCE INC
82161B40670MILLER TRAILERS INC
4449066155PORTA DRILL INC
A18108856721PREMIER CENTRAL TRUCK BODY
1456183120PRESSED METALS OF AMERICA INC
66661058275SASCO INC CANADIAN DIV
A001456122852SPALLA INC
Technical Data | NSN 2530-00-278-2248
Characteristic Specifications
TIRE RIM NOMINAL DIAMETER20.000 INCHES
TIRE NOT INCLUDED
DESIGN FORM DISK
DISK TYPE SINGLE
MOUNTING FACE TYPE CONVEX
OFFSET DISTANCE FROM RIM CENTERLINE TO OUTSIDE WHEEL MOUNTING FACE5.125 INCHES MINIMUM AND 5.250 INCHES MAXIMUM
LIGHTENING HOLE INCLUDED
LIGHTENING HOLE QUANTITY6
LIGHTENING HOLE HUB CAP MOUNTING FEATURE NOT INCLUDED
DESIGN TYPE INTEGRAL RIM
GROOVE DEPTH1.312 INCHES NOMINAL
OVERALL WIDTH6.000 INCHES NOMINAL
EFFECTIVE WIDTH4.938 INCHES NOMINAL
RING TYPE FOR WHICH DESIGNED SIDE
RING NOT INCLUDED
RING STYLE RIM SIDE RING SLOTTED
BOLT/STUD MOUNTING FACILITY NOT INCLUDED
VALVE HOLE SHAPE SLOTTED
MOUNTING TYPE FOR WHICH DESIGNED SINGLE TIRE
HUB CHARACTERISTIC DEMOUNTABLE
HUB NOT INCLUDED
PILOT HOLE DIAMETER6.438 INCHES NOMINAL
MOUNTING HOLE QUANTITY6
MOUNTING HOLE DIAMETER1.281 INCHES NOMINAL
MOUNTING BOLT CIRCLE DIAMETER8.745 INCHES MINIMUM AND 8.755 INCHES MAXIMUM
