NSN 2805-00-354-3517

Part Details | ENGINE POPPET VALVE TAPPET

2805-00-354-3517 A cylindrically shaped metal item designed to transmit intermittent motion from the cam lobe on a shaft or cam ring, to the engine poppet valve. It may be mechanically or hydraulically operating, and may include adjusting devices.

Alternate Parts: H5043B, 5215163, 342837, 2805-00-354-3517, 00-354-3517, 2805003543517, 003543517

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
28JAN 01, 196300-354-351722199 ( TAPPET, ENGINE POPPET VALVE )
REFERENCE DRAWINGS & PICTURES

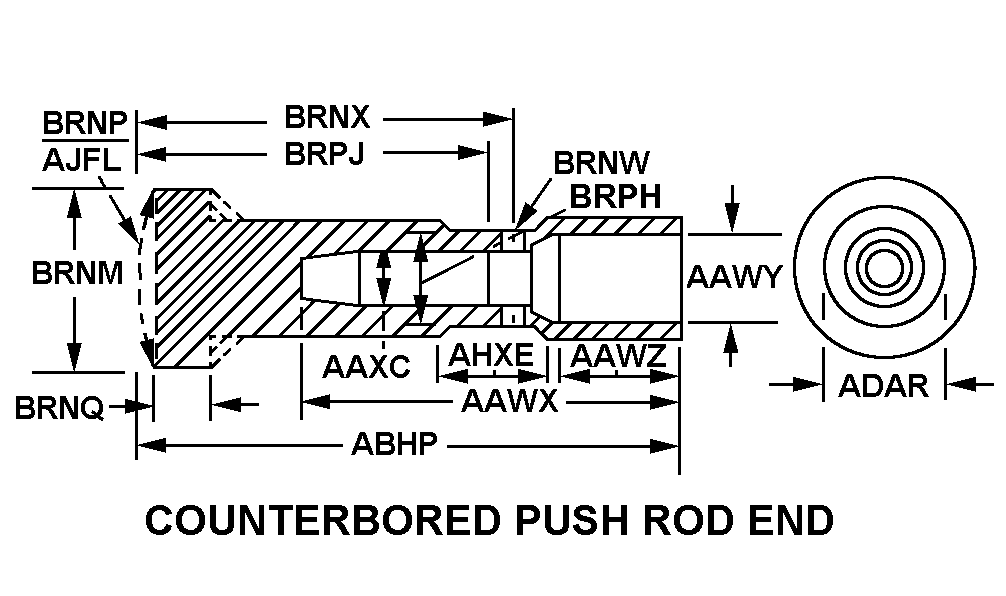

COUNTERBORED PUSH ROD END

Cross Reference | NSN 2805-00-354-3517
Part Number Cage Code Manufacturer
H5043B92856EATON CORPENGINE COMPONENTS DIV
521516319207U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM
34283765282WHITE MOTOR CORP
Technical Data | NSN 2805-00-354-3517
Characteristic Specifications
OPERATION METHOD HYDRAULIC
MATERIAL AND LOCATION STEEL OVERALL
METALLIC HARDNESS RATING AND LOCATIONAAB45.0 ROCKWELL C MINIMUM
CASEHARDENING INDICATOR NOT CASEHARDENED
STYLE DESIGNATOR COUNTERBORED PUSH ROD END
CONCENTRIC HOLE DEPTH2.422 INCHES MINIMUM AND 2.452 INCHES MAXIMUM
COUNTERBORE DIAMETER0.533 INCHES MINIMUM AND 0.595 INCHES MAXIMUM
COUNTERBORE DEPTH0.687 INCHES NOMINAL
CONCENTRIC HOLE DIAMETER0.515 INCHES NOMINAL
OVERALL LENGTH3.000 INCHES NOMINAL
BODY OUTSIDE DIAMETER0.7177 INCHES MINIMUM AND 0.7820 INCHES MAXIMUM
BODY GROOVE WIDTH0.562 INCHES NOMINAL
CAM END DIAMETER1.312 INCHES NOMINAL
CROWN HEIGHT0.003 INCHES MINIMUM AND 0.005 INCHES MAXIMUM
CAM END HEIGHT0.187 INCHES NOMINAL
BODY HOLE DIAMETER0.125 INCHES NOMINAL
DISTANCE FROM BODY HOLE CENTER TO CAM END1.875 INCHES NOMINAL
BODY GROOVE DIAMETER0.171 INCHES NOMINAL
DISTANCE FROM BODY GROOVE CENTER TO CAM END1.813 INCHES NOMINAL
ADJUSTABILITY NONADJUSTABLE
SIZE DESIGNATION STANDARD
FSC APPLICATION DATAGASOLINE ENGINE,NONAIRCRAFT
