Part Details | DIRT AND LIQUID DEFLECTOR
2805-00-449-5287 An item so shaped as to deflect one or more of the following: dust, dirt, grease, oil, or liquid into a desired direction or away from a particular area. Can be attached to a stationary or with a revolving part. May or may not be a mechanical device.
Alternate Parts: JS276G, JS-27-6G, 2805-00-449-5287, 00-449-5287, 2805004495287, 004495287
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | JAN 01, 1963 | 00-449-5287 | 10255 ( DEFLECTOR, DIRT AND LIQUID ) |
REFERENCE DRAWINGS & PICTURES

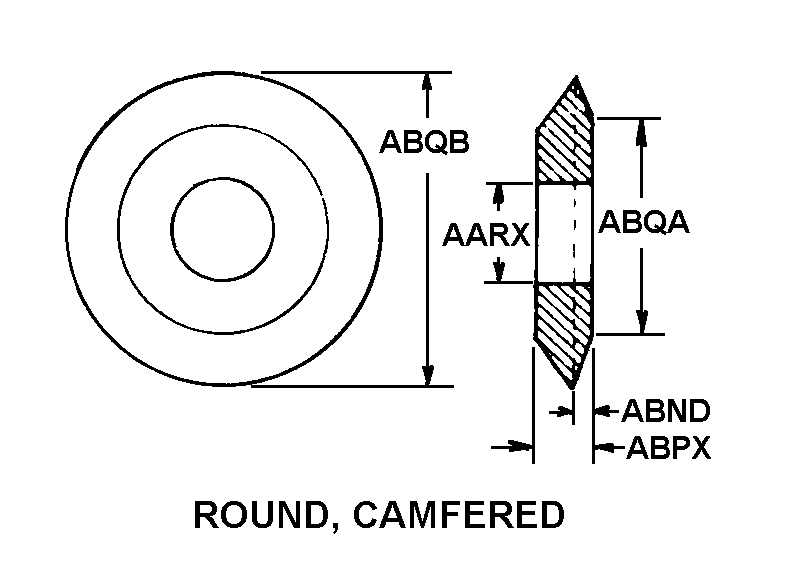

ROUND, CHAMFERED
Cross Reference | NSN 2805-00-449-5287
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| JS-27-6G | 14541 | GE OIL & GAS COMPRESSION SYSTEMS,LLC |
Technical Data | NSN 2805-00-449-5287
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | ROUND, CHAMFERED |
| INSIDE DIAMETER | 1.625 INCHES NOMINAL |
| TAPER LENGTH | 0.062 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.062 INCHES NOMINAL |
| TAPER MINOR DIAMETER | 2.000 INCHES NOMINAL |
| TAPER MAJOR DIAMETER | 2.750 INCHES NOMINAL |
| MATERIAL | STEEL |
