Part Details | FLEXIBLE COUPLING INSERT
3010-00-247-0004 An item specifically designed to be inserted between the driving and driven members of a flexible coupling to allow for slight misalignment of the shafts.
Alternate Parts: 8436648, 3010-00-247-0004, 00-247-0004, 3010002470004, 002470004
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | JAN 05, 1972 | 00-247-0004 | 08010 ( INSERT, FLEXIBLE COUPLING ) |
REFERENCE DRAWINGS & PICTURES

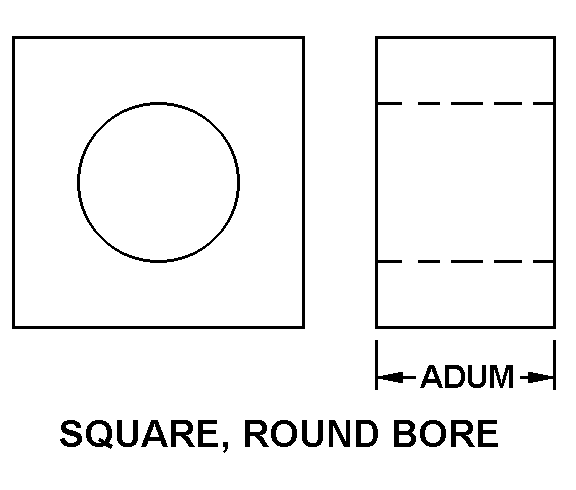

SQUARE, ROUND BORE
Cross Reference | NSN 3010-00-247-0004
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8436648 | 19204 | ARMY, UNITED STATES DEPARTMENT OFTHE |
Technical Data | NSN 3010-00-247-0004
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SQUARE, ROUND BORE |
| OVERALL THICKNESS | 0.020 INCHES NOMINAL |
| SPECIAL FEATURES | LAMINATED CONSTRUCTION FEATURE-NOT INCL.;BORE DIA 0.438/0.439 IN.;WDTH ACROSS FLATS 0.740 IN. |
