3020-00-177-9150 A flexible mechanical device consisting of inverted tooth links, with or without guide links, and used for power transmission. The links are joined by pins and mate with the sprocket teeth with a sliding action. Excludes flexible mechanical devices specifically designed for use with COUPLING, SHAFT, FLEXIBLE.
Alternate Parts: 8395463, 3020-00-177-9150, 00-177-9150, 3020001779150, 001779150
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | JAN 22, 1969 | 00-177-9150 | 04449 ( CHAIN, SILENT ) |

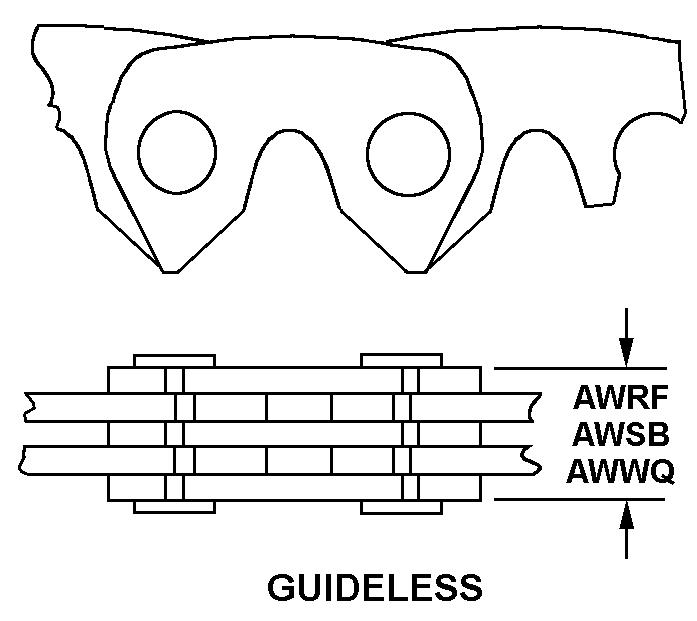

REFERENCE DRAWINGS & PICTURES
PIN
GUIDELESS
GUIDELESS
GUIDELESS
Cross Reference | NSN 3020-00-177-9150
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8395463 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 3020-00-177-9150
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| NOMINAL PITCH DISTANCE | 0.375 INCHES |
| LINK STYLE | GUIDELESS |
| LINK ROW QUANTITY | 15 |
| END CONNECTION STYLE | PIN |
| PIN OVERALL LENGTH | 1.0625 INCHES NOMINAL |
