Part Details | BEARING RETAINING PLATE
3110-00-105-6123 A comparatively flat rigid item, with or without a centrally located aperture, designed to hold an annular bearing or a sleeve bearing in a fitted inclosure. It must have drilled and/or tapped holes for mounting purposes. Excludes END BELL, ELECTRICAL ROTATING EQUIPMENT.
Alternate Parts: 2520001056123, 11616575, 3110-00-105-6123, 00-105-6123, 3110001056123, 001056123
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JUL 03, 1968 | 00-105-6123 | 22293 ( PLATE, RETAINING, BEARING ) |
REFERENCE DRAWINGS & PICTURES

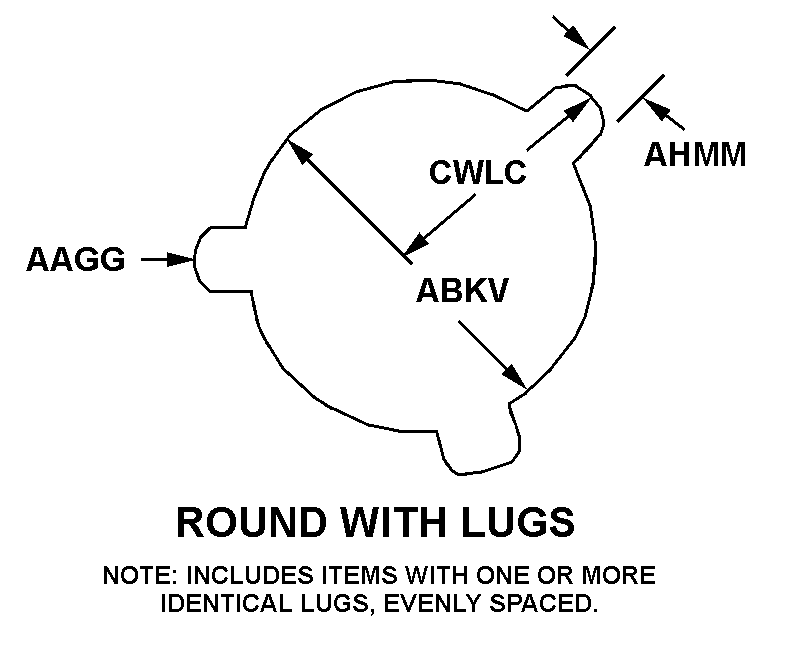

ROUND WITH LUGS
Cross Reference | NSN 3110-00-105-6123
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2520001056123 | SCY13 | E.C.A ETABLISSEMENTCENTRALD'APPROVISIONNEMENT DES |
| 11616575 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 3110-00-105-6123
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | ROUND WITH LUGS |
| LUG QUANTITY | 4 |
| OUTSIDE DIAMETER | 4.875 INCHES NOMINAL |
| LUG WIDTH | 0.375 INCHES NOMINAL |
| RADIUS FROM CENTER OF PLATE TO END OF LUG | 2.718 INCHES NOMINAL |
