Part Details | CYLINDRICAL ROLLER BEARING
3110-00-106-3529 A nonadjustable roller bearing consisting of a single or multiple-row of hardened cylindrical rollers and a retainer used with or without inner or oute r rings. Excludes BEARING, ROLLER, AIRFRAME.
Alternate Parts: 288913, 3110-00-106-3529, 00-106-3529, 3110001063529, 001063529
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JUL 19, 1968 | 00-106-3529 | 00015 ( BEARING, ROLLER, CYLINDRICAL ) |
REFERENCE DRAWINGS & PICTURES

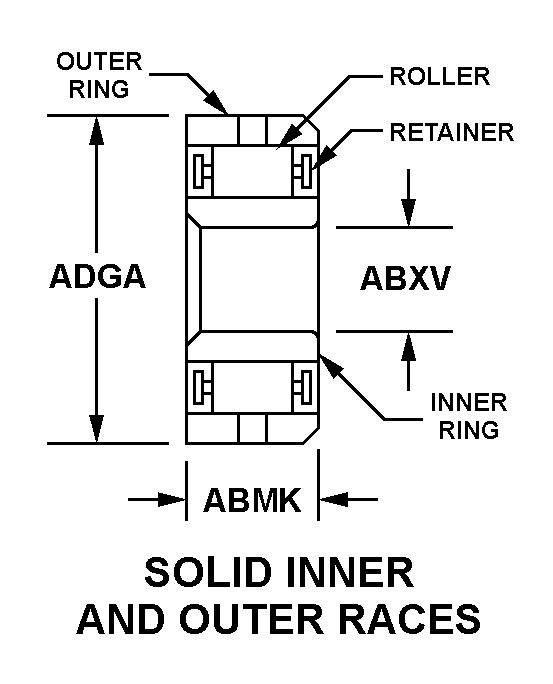

SOLID INNER AND OUTER RACES
Cross Reference | NSN 3110-00-106-3529
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 288913 | 00198 | PRATT & WHITNEY CANADA CIE DIVPRATT& WHITNEY CANADA CORP. |
Technical Data | NSN 3110-00-106-3529
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SOLID INNER AND OUTER RACES |
| OVERALL WIDTH | 1.2003 INCHES MINIMUM AND 1.2043 INCHES MAXIMUM |
| BORE DIAMETER | 3.9357 INCHES MINIMUM AND 3.9361 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 6.6924 INCHES MINIMUM AND 6.6929 INCHES MAXIMUM |
| STANDARD TOLERANCE DESIGNATION | RBEC NO.5 |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | MACHINED |
| LOCATING FEATURE | TWO DIRECTION |
| INTERNAL CLEARANCE | R0.0020 INCHES MINIMUM AND R0.0036 INCHES MAXIMUM |
| SPECIAL FEATURES | TIN FLASH RETAINER ALL OVER PER AMS 2408 0.00002-0.00005 THK |
