Part Details | INNER BEARING RING
3110-00-106-3984 The inner component of a ball or roller bearing which provides a contact surface for the rolling elements of an antifriction bearing.
Alternate Parts: 24002PC6, MI96, MS5196250, MS51962-50, IR2326, 1R9611648, 3110-00-106-3984, 00-106-3984, 3110001063984, 001063984
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JUL 12, 1968 | 00-106-3984 | 00028 ( RING, BEARING, INNER ) |
REFERENCE DRAWINGS & PICTURES

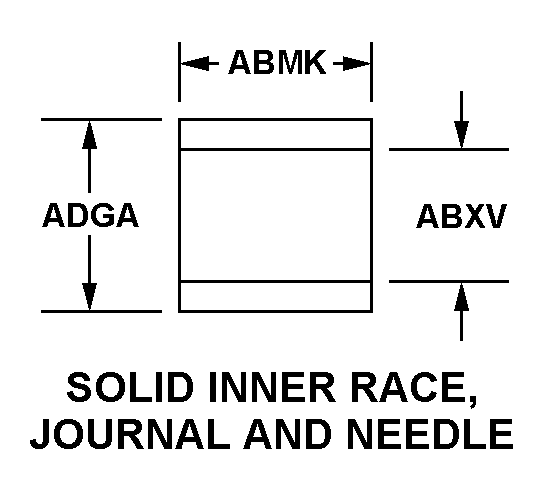

SOLID INNER RACE, JOURNAL AND NEEDLE
Cross Reference | NSN 3110-00-106-3984
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 24002PC6 | 98523 | JERED LLCDBA PAR |
| MI96 | 92563 | MCGILL MANUFACTURING COMPANY, INC. |
| MS51962-50 | 96906 | MILITARY STANDARDSPROMULGATED BY MILITARY DEPARTMENTS |
| IR2326 | 51588 | RBC BEARINGS INCORPORATEDDIV WEST TRENTON DIVISION |
| 1R9611648 | 60380 | TIMKEN AEROSPACE, INCDBA TORRINGTON PRODUCT |
Technical Data | NSN 3110-00-106-3984
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SOLID INNER RACE, JOURNAL AND NEEDLE |
| OVERALL WIDTH | 3.0150 INCHES NOMINAL |
| BORE DIAMETER | 6.0000 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 7.2500 INCHES NOMINAL |
| FEATURES PROVIDED | LUBRICATION HOLE AND LUBRICATION GROOVE |
| SPECIAL FEATURES | ONE TO FOUR OIL HOLES; OIL GROOVE OPTIONAL ON ID |
