Part Details | TRACK ROLLER BALL BEARING
3110-00-106-4142 An antifriction bearing having spherical rolling elements designed for use in a track roller assembly.
Alternate Parts: 502AS2663, 502AS2663, KP4R162AXXXX, KP4R16-2AXXXX, 3110-00-106-4142, 00-106-4142, 3110001064142, 001064142
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | MAY 21, 1972 | 00-106-4142 | 00045 ( BEARING, BALL, TRACK ROLLER ) |
REFERENCE DRAWINGS & PICTURES

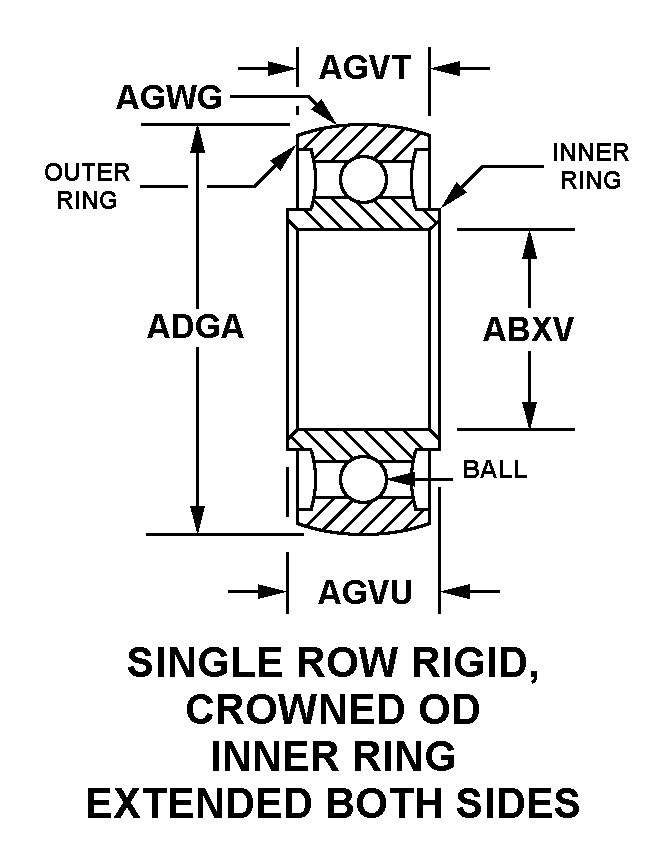

SINGLE ROW RIGID, CROWNED OD INNER RING EXTENDED BOTH SIDES
Cross Reference | NSN 3110-00-106-4142
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 502AS2663 | 30003 | NAVAL AIR SYSTEMS COMMAND MANAGEDORIGINAL DESIGN ACTIVITY NOT |
| 502AS2663 | 21335 | TIMKEN COMPANY, THEDIV TIMKEN AEROSPACE |
| KP4R16-2AXXXX | 21335 | TIMKEN COMPANY, THEDIV TIMKEN AEROSPACE |
Technical Data | NSN 3110-00-106-4142
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SINGLE ROW RIGID, CROWNED OD INNER RING EXTENDED BOTH SIDES |
| BORE DIAMETER | 0.2495 INCHES MINIMUM AND 0.2500 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 0.9980 INCHES MINIMUM AND 1.0000 INCHES MAXIMUM |
| OUTER RING WIDTH | 0.3300 INCHES MINIMUM AND 0.3350 INCHES MAXIMUM |
| INNER RING WIDTH | 0.3850 INCHES MINIMUM AND 0.3900 INCHES MAXIMUM |
| CROWN RADIUS | 0.9900 INCHES MINIMUM AND 1.0000 INCHES MAXIMUM |
| SEAL QUANTITY | 2 |
