Part Details | BEARING BALL RETAINER
3110-00-107-8900 A frame or inclosure which spaces and retains the rolling elements of a BEARING, BALL (as modified).
Alternate Parts: 9634M47P01, 3110-00-107-8900, 00-107-8900, 3110001078900, 001078900
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JUL 26, 1968 | 00-107-8900 | 00032 ( RETAINER, BALL, BEARING ) |
REFERENCE DRAWINGS & PICTURES

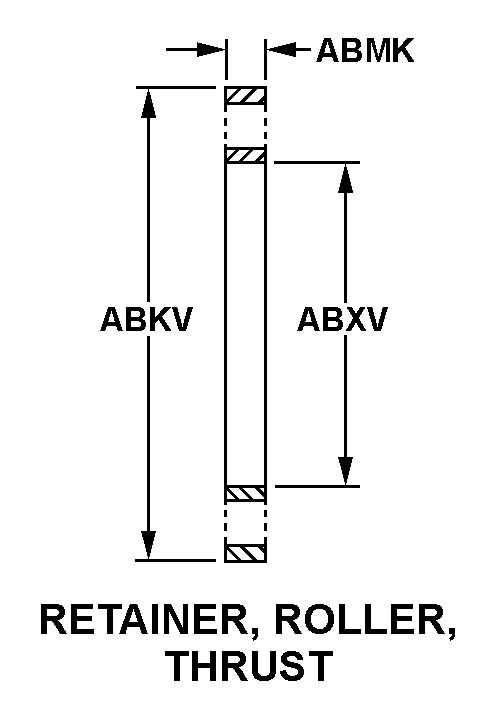

RETAINER, ROLLER, THRUST
Cross Reference | NSN 3110-00-107-8900
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9634M47P01 | 07482 | GENERAL ELECTRIC COMPANYDBA GE |
Technical Data | NSN 3110-00-107-8900
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | RETAINER, ROLLER, THRUST |
| OUTSIDE DIAMETER | 9.5800 INCHES MINIMUM AND 9.6000 INCHES MAXIMUM |
| OVERALL WIDTH | 0.0600 INCHES MINIMUM AND 0.0700 INCHES MAXIMUM |
| BORE DIAMETER | 8.2200 INCHES MINIMUM AND 8.2400 INCHES MAXIMUM |
| RETAINER FABRICATION METHOD | MACHINED |
| RETAINER PIECE QUANTITY | 1 |
