Part Details | CYLINDRICAL ROLLER BEARING
3110-00-156-1407 A nonadjustable roller bearing consisting of a single or multiple-row of hardened cylindrical rollers and a retainer used with or without inner or oute r rings. Excludes BEARING, ROLLER, AIRFRAME.
Alternate Parts: 31850, 31850, A6212TS, A6212TS, 230341, 2503ROLE6212B, 3110-00-156-1407, 00-156-1407, 3110001561407, 001561407
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 01, 1961 | 00-156-1407 | 00015 ( BEARING, ROLLER, CYLINDRICAL ) |
REFERENCE DRAWINGS & PICTURES

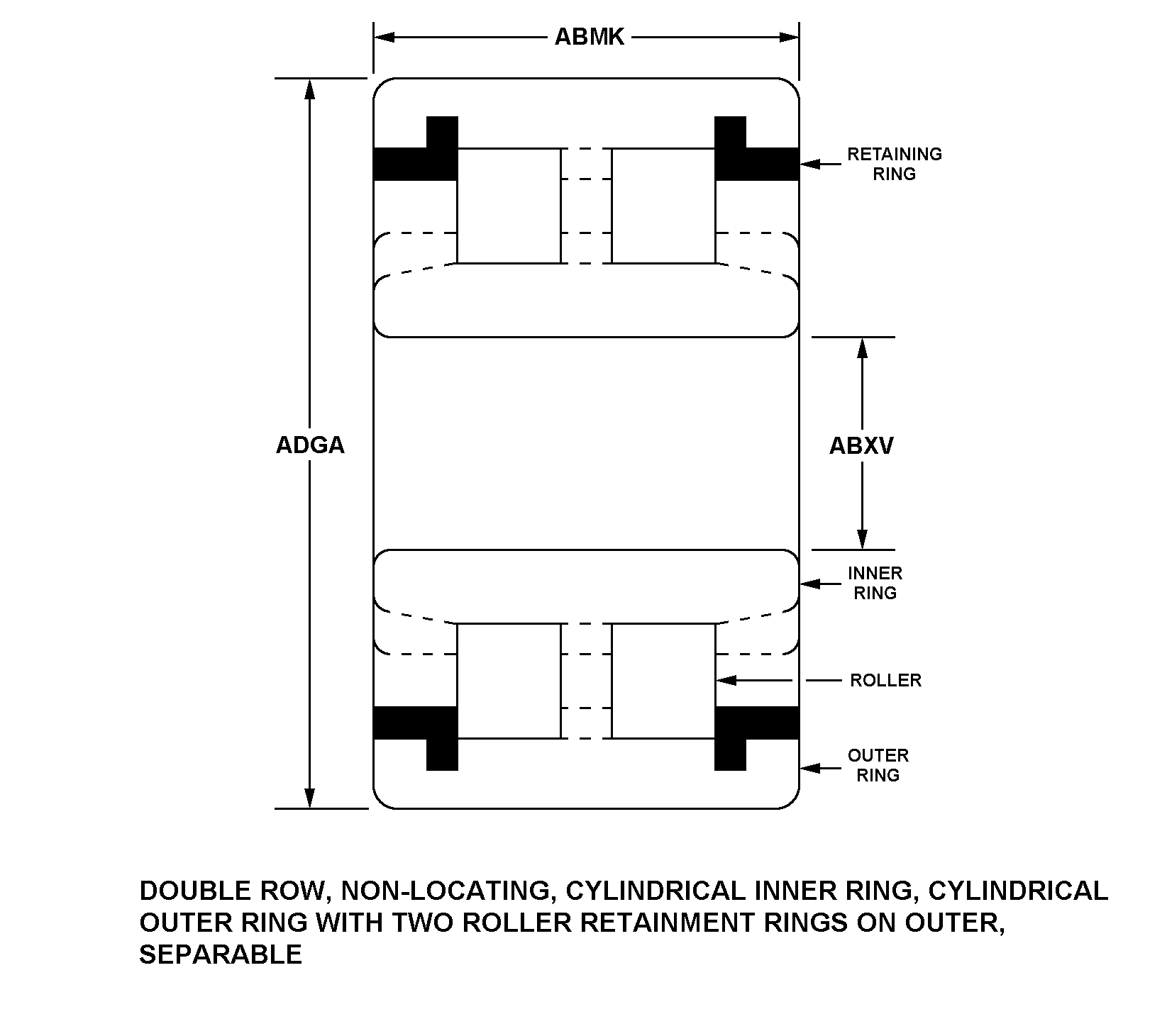

DOUBLE ROW, NON-LOCATING, CYLINDRICAL INNER RING, CYLINDRICAL OUTER RING WITH TWO ROLLER RETAINMENT RINGS ON OUTER, SEPARABLE
Cross Reference | NSN 3110-00-156-1407
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 31850 | 93232 | CURTISS-WRIGHT ELECTRO-MECHANICALCORPORATION |
| 31850 | 80221 | DRESSER INDUSTRIES INC |
| A6212TS | 24617 | GENERAL MOTORS CORP |
| A6212TS | 43334 | GENERAL MOTORS CORPDELCO MORAINE NDH DIV |
| 230341 | 30076 | HYSTER-YALE GROUP, INC. |
| 2503ROLE6212B | 63857 | WARREN PUMPS LLC |
Technical Data | NSN 3110-00-156-1407
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | DOUBLE ROW, NON-LOCATING, CYLINDRICAL INNER RING, CYLINDRICAL OUTER RING WITH TWO ROLLER RETAINMENT RINGS ON OUTER, SEPARABLE |
| OVERALL WIDTH | 2.8750 INCHES NOMINAL |
| BORE DIAMETER | 60.0 MILLIMETERS NOMINAL |
| OVERALL OUTSIDE DIAMETER | 110.0 MILLIMETERS NOMINAL |
| STANDARD TOLERANCE DESIGNATION | RBEC NO.1 |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| LOCATING FEATURE | NONLOCATING |
| INTERNAL FIT-UP DESIGNATION | STANDARD |
