Part Details | ANNULAR BALL BEARING
3110-00-157-2091 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.
Alternate Parts: NS1053PC44, 7258500839, 72-58500-839, 2617, NS1053PC44, H0206, ENJ171PC44, ENJ17-1PC44, ENF171PC44, ENF17-1PC44, ENE171PC44, ENE17-1PC44, END171PC44, END17-1PC44, A3220PC44, A3064PC40, A2961PC44, 7258500839, 72-58500-839, 7258500839, 72-58500-839, 2617, ENJ171PC44, ENJ17-1PC44, ENF171PC44, ENF17-1PC44, ENE171PC44, ENE17-1PC44, END171PC44, END17-1PC44, H0206, H20206, H0206, H0206, H0206ND, 3110-00-157-2091, 00-157-2091, 3110001572091, 001572091
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 01, 1963 | 00-157-2091 | 00014 ( BEARING, BALL, ANNULAR ) |
REFERENCE DRAWINGS & PICTURES

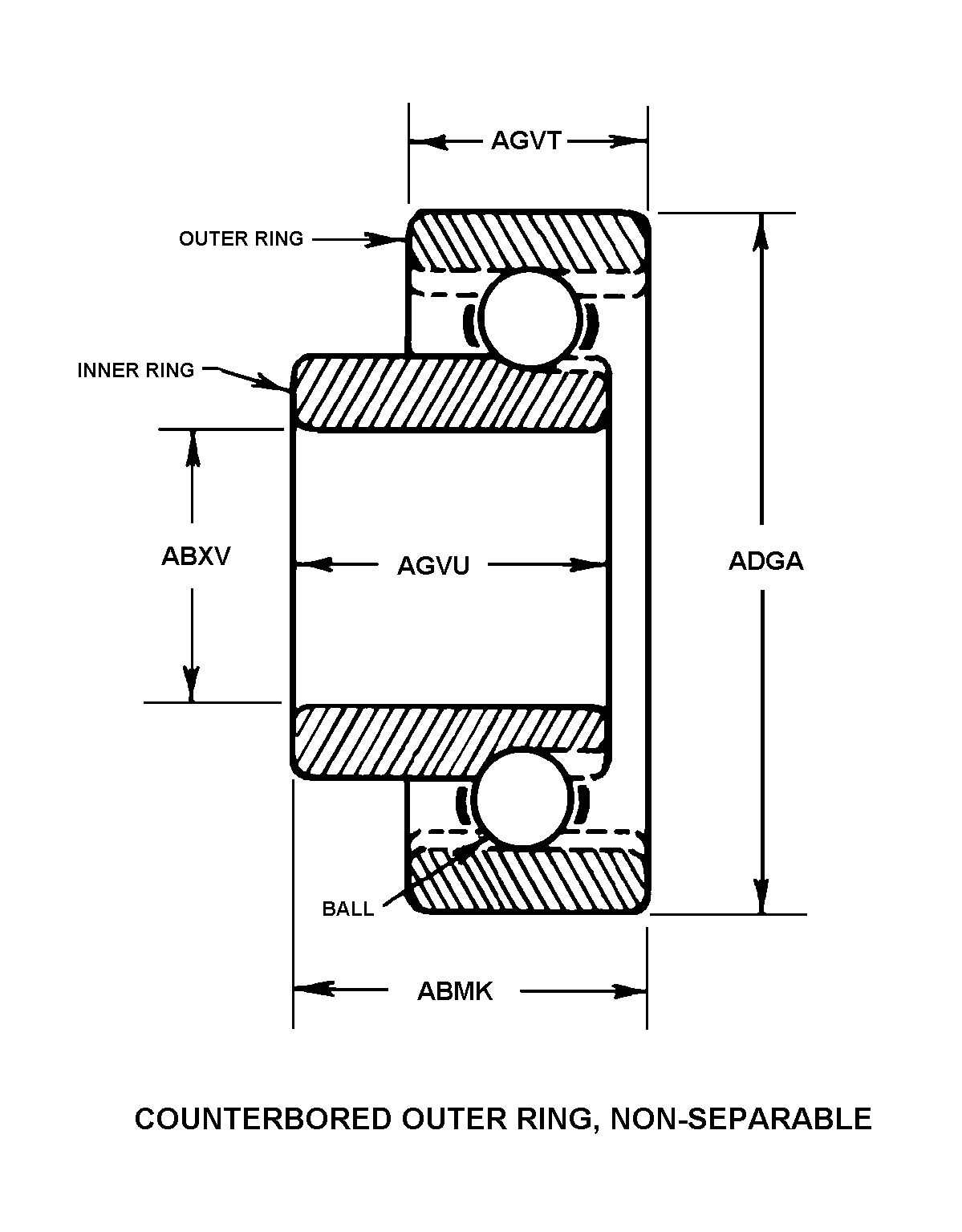

COUNTERBORED OUTER RING, NON-SEPARABLE
Cross Reference | NSN 3110-00-157-2091
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NS1053PC44 | 76688 | ARMCO INCNATION SUPPLY CO |
| 72-58500-839 | 50024 | COLTEC INDUSTRIES INCDBA FAIRBANKS MORSE ENGINE FM/ALCO |
| 2617 | 89198 | EMHART INDUSTRIES INC |
| NS1053PC44 | 89198 | EMHART INDUSTRIES INC |
| H0206 | 89198 | EMHART INDUSTRIES INC |
| ENJ17-1PC44 | 89198 | EMHART INDUSTRIES INC |
| ENF17-1PC44 | 89198 | EMHART INDUSTRIES INC |
| ENE17-1PC44 | 89198 | EMHART INDUSTRIES INC |
| END17-1PC44 | 89198 | EMHART INDUSTRIES INC |
| A3220PC44 | 89198 | EMHART INDUSTRIES INC |
| A3064PC40 | 89198 | EMHART INDUSTRIES INC |
| A2961PC44 | 89198 | EMHART INDUSTRIES INC |
| 72-58500-839 | 89198 | EMHART INDUSTRIES INC |
| 72-58500-839 | 7PZX0 | FAIRBANKS MORSE, LLC |
| 2617 | 14541 | GE OIL & GAS COMPRESSION SYSTEMS,LLC |
| ENJ17-1PC44 | 14541 | GE OIL & GAS COMPRESSION SYSTEMS,LLC |
| ENF17-1PC44 | 14541 | GE OIL & GAS COMPRESSION SYSTEMS,LLC |
| ENE17-1PC44 | 14541 | GE OIL & GAS COMPRESSION SYSTEMS,LLC |
| END17-1PC44 | 14541 | GE OIL & GAS COMPRESSION SYSTEMS,LLC |
| H0206 | 24617 | GENERAL MOTORS CORP |
| H20206 | 43334 | GENERAL MOTORS CORPDELCO MORAINE NDH DIV |
| H0206 | 43334 | GENERAL MOTORS CORPDELCO MORAINE NDH DIV |
| H0206 | 7X677 | GENERAL MOTORS LLCDBA GENERAL MOTORS |
| H0206ND | 80064 | NAVAL SHIP SYSTEMS COMMAND |
Technical Data | NSN 3110-00-157-2091
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | COUNTERBORED OUTER RING, NON-SEPARABLE |
| OVERALL WIDTH | 16.0 MILLIMETERS NOMINAL |
| BORE DIAMETER | 30.00 MILLIMETERS NOMINAL |
| OVERALL OUTSIDE DIAMETER | 62.00 MILLIMETERS NOMINAL |
| OUTER RING WIDTH | 0.4430 INCHES NOMINAL |
| INNER RING WIDTH | 0.5250 INCHES NOMINAL |
| STANDARD TOLERANCE DESIGNATION | ABEC NO.1 |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | MACHINED |
| LOAD DIRECTION | ANGULAR |
| CONTACT ANGLE | 60.0 DEGREES NOMINAL |
