Part Details | ANNULAR BALL BEARING
3110-00-158-5939 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.
Alternate Parts: 710143, 10134, H5310A, D117392, D1-17392, 5310W2C1FS179, 3110-00-158-5939, 00-158-5939, 3110001585939, 001585939
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 01, 1961 | 00-158-5939 | 00014 ( BEARING, BALL, ANNULAR ) |
REFERENCE DRAWINGS & PICTURES

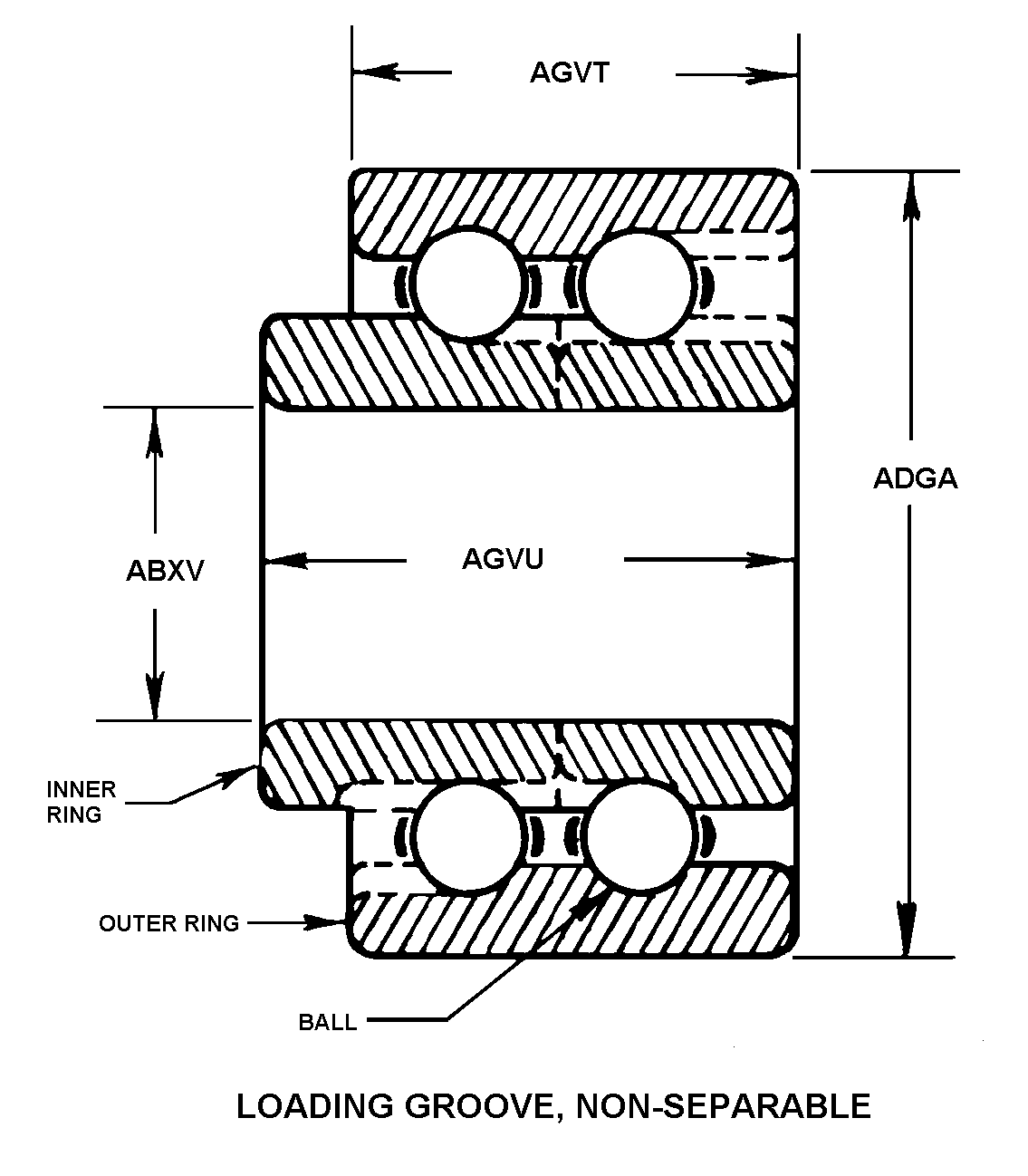

LOADING GROOVE, NON-SEPARABLE
Cross Reference | NSN 3110-00-158-5939
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 710143 | 21450 | ARMY WEAPONS COMMANDATTN AMSWE-REE-S |
| 10134 | 95201 | NAPCO INTERNATIONAL LLC |
| H5310A | 38443 | SKF USA INC.DBA SKF AEROENGINE NORTH AMERICA |
| D1-17392 | 38443 | SKF USA INC.DBA SKF AEROENGINE NORTH AMERICA |
| 5310W2C1FS179 | 21335 | TIMKEN COMPANY, THEDIV TIMKEN AEROSPACE |
Technical Data | NSN 3110-00-158-5939
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | LOADING GROOVE, NON-SEPARABLE |
| BORE DIAMETER | 50.00 MILLIMETERS NOMINAL |
| OVERALL OUTSIDE DIAMETER | 10.00 MILLIMETERS NOMINAL |
| OUTER RING WIDTH | 1.7500 INCHES NOMINAL |
| INNER RING WIDTH | 1.8755 INCHES NOMINAL |
| INTERNAL FIT-UP CONTACT ANGULAR DIRECTION | OUTWARD CONVERGENT |
| STANDARD TOLERANCE DESIGNATION | ABEC NO.1 |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | PRESSED |
| LOAD DIRECTION | ANGULAR |
| INTERNAL FIT-UP DESIGNATION | STANDARD |
