Part Details | ANNULAR BALL BEARING
3110-00-188-5665 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.
Alternate Parts: 4484, 9018041, 901804-1, 3110-00-188-5665, 00-188-5665, 3110001885665, 001885665
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | MAR 14, 1973 | 00-188-5665 | 00014 ( BEARING, BALL, ANNULAR ) |
REFERENCE DRAWINGS & PICTURES

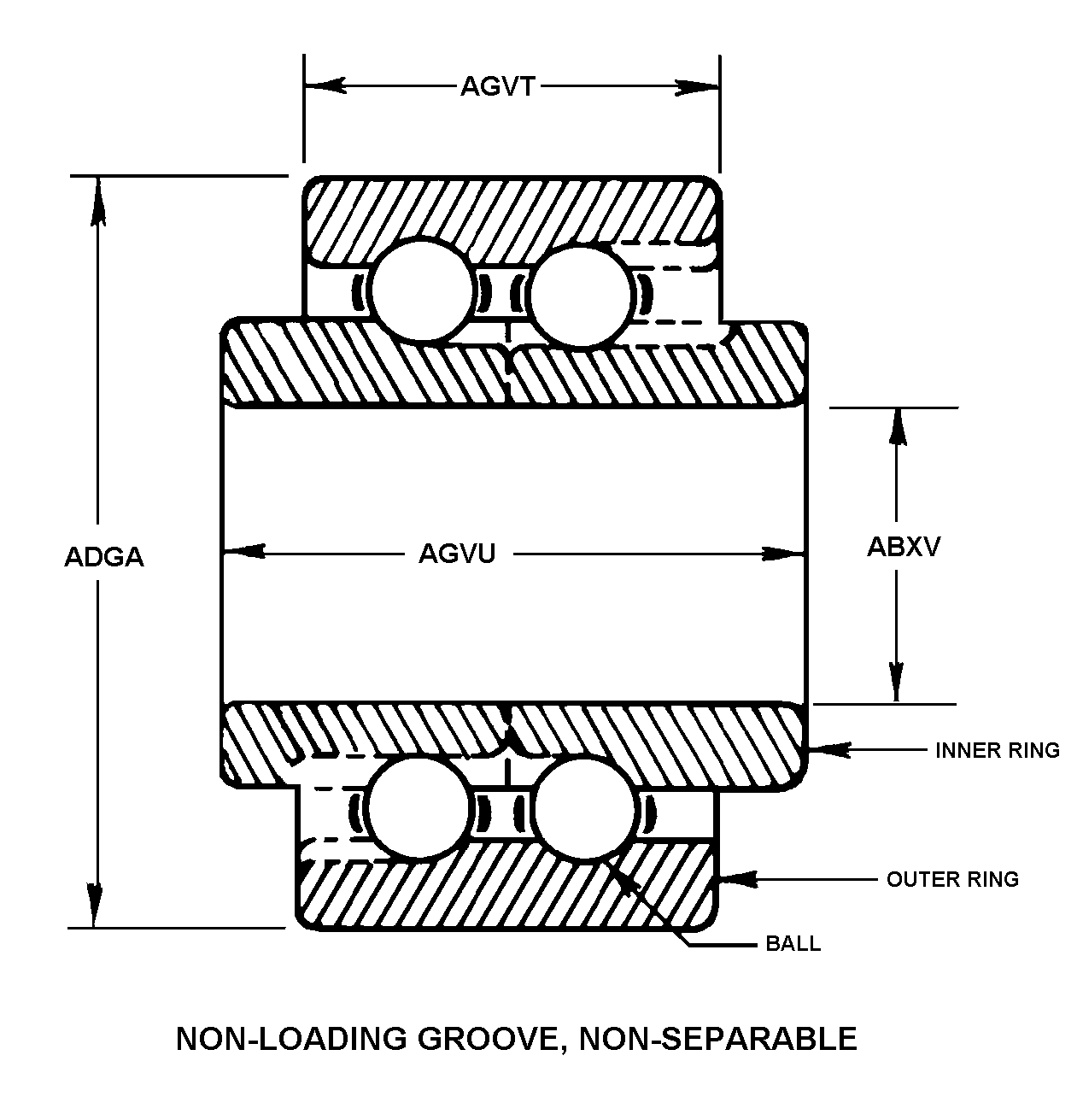

NON-LOADING GROOVE, NON-SEPARABLE
Cross Reference | NSN 3110-00-188-5665
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4484 | 83086 | NEW HAMPSHIRE BALL BEARINGS, INC.DIV HITECH DIVISION |
| 901804-1 | 82577 | RAYTHEON COMPANYDBA RAYTHEON |
Technical Data | NSN 3110-00-188-5665
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | NON-LOADING GROOVE, NON-SEPARABLE |
| BORE DIAMETER | 0.0935 INCHES MINIMUM AND 0.0937 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 0.3748 INCHES MINIMUM AND 0.3750 INCHES MAXIMUM |
| OUTER RING WIDTH | 0.2498 INCHES MINIMUM AND 0.2500 INCHES MAXIMUM |
| INNER RING WIDTH | 0.2600 INCHES MINIMUM AND 0.2750 INCHES MAXIMUM |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | MIL-G-81322 MIL SPEC SINGLE MATERIAL RESPONSE |
| STANDARD TOLERANCE DESIGNATION | ABEC NO. 7P |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| SHIELD QUANTITY | 2 |
| LOAD DIRECTION | ANGULAR |
| SPECIAL FEATURES | 20.0 DEGREE CONTACT ANGLE,DUPLEXED PAIR |
