Part Details | SELF-ALIGNING ROLLER BEARING
3110-00-190-9303 An antifriction bearing having a cylindrical rolling element and one spherical raceway which will adjust to varying degrees of shaft and/or support misalignment without damage to the raceways and permits the full rating of the bearing to be utilized.
Alternate Parts: 22517AX2 1516, 22517AX2 15-16, 22517AX2 1516, 22517AX2 15-16, 22517A2, 22517AX2 1516, 22517AX2 15-16, 22517A, 3110-00-190-9303, 00-190-9303, 3110001909303, 001909303
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 01, 1963 | 00-190-9303 | 00016 ( BEARING, ROLLER, SELF-ALIGNING ) |

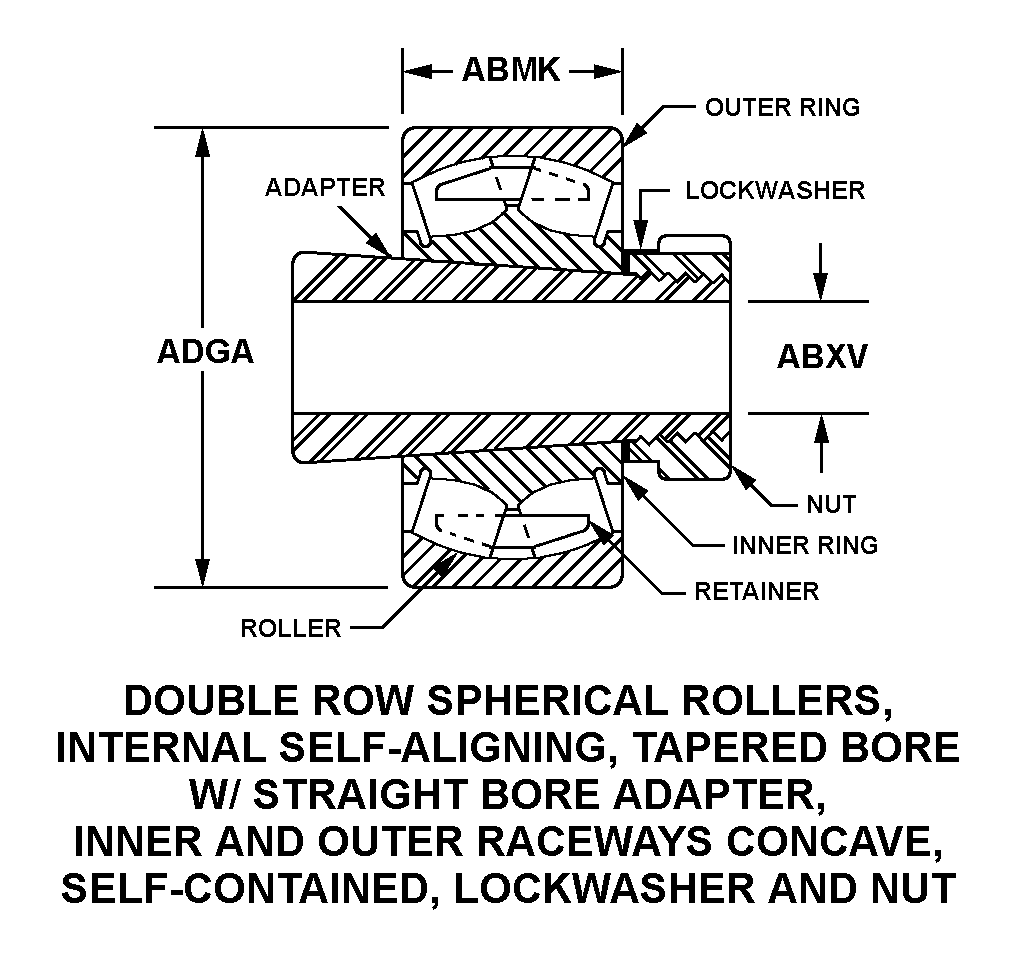

REFERENCE DRAWINGS & PICTURES
DOUBLE ROW SPHERICAL ROLLERS, INTERNAL SELF-ALIGNING, TAPERED BORE WITH STRAIGHT BORE ADAPTER, INNER AND OUTER RACEWAYS CONCAVE, SELF-CONTAINED, LOCKWASHER AND NUT
Cross Reference | NSN 3110-00-190-9303
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 22517AX2 15-16 | 80489 | AMETEK INC |
| 22517AX2 15-16 | 31061 | AMETEK, INC.DBA AMETEK INC.-PROCESS AND |
| 22517A2 | 52676 | SKF USA INC. |
| 22517AX2 15-16 | 52676 | SKF USA INC. |
| 22517A | 52676 | SKF USA INC. |
Technical Data | NSN 3110-00-190-9303
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | DOUBLE ROW SPHERICAL ROLLERS, INTERNAL SELF-ALIGNING, TAPERED BORE WITH STRAIGHT BORE ADAPTER, INNER AND OUTER RACEWAYS CONCAVE, SELF-CONTAINED, LOCKWASHER AND NUT |
| OVERALL WIDTH | 36.00 MILLIMETERS NOMINAL |
| BORE DIAMETER | 2.9375 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 150.00 MILLIMETERS NOMINAL |
| STANDARD TOLERANCE DESIGNATION | RBEC NO.1 |
| BORE SHAPE | STANDARD TAPER |
| SURFACE FINISH | GROUND |
| INTERNAL FIT-UP DESIGNATION | STANDARD |
| SPECIAL FEATURES | WITH COMPLETE ADAPTER,CONSISTING OF ADAPTER,NUT AND LOCKWASHER |
