Part Details | SELF-ALIGNING ROLLER BEARING
3110-00-194-3955 An antifriction bearing having a cylindrical rolling element and one spherical raceway which will adjust to varying degrees of shaft and/or support misalignment without damage to the raceways and permits the full rating of the bearing to be utilized.
Alternate Parts: 2300U, 2300, 7620, 3110-00-194-3955, 00-194-3955, 3110001943955, 001943955
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | MAR 11, 1970 | 00-194-3955 | 00016 ( BEARING, ROLLER, SELF-ALIGNING ) |
REFERENCE DRAWINGS & PICTURES

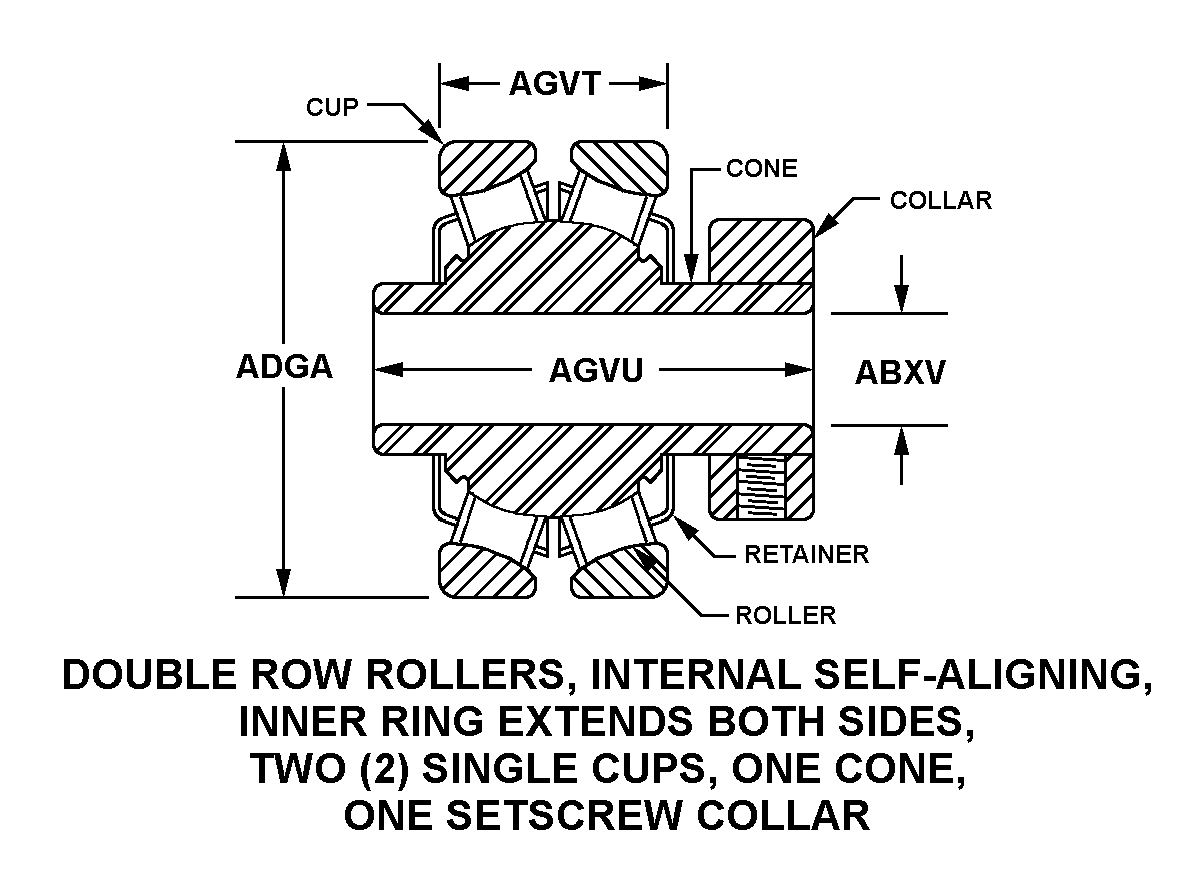

DOUBLE ROW ROLLERS, INTERNAL SELF-ALIGNING, INNER RING EXTENDS BOTH SIDES, TWO (2) SINGLE CUPS, ONE CONE, ONE SETSCREW COLLAR
Cross Reference | NSN 3110-00-194-3955
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2300U | 77896 | REXNORD INDUSTRIES, LLCDIV BEARING OPERATION |
| 2300 | 77896 | REXNORD INDUSTRIES, LLCDIV BEARING OPERATION |
| 7620 | 61361 | REXWORKS INC |
Technical Data | NSN 3110-00-194-3955
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | DOUBLE ROW ROLLERS, INTERNAL SELF-ALIGNING, INNER RING EXTENDS BOTH SIDES, TWO (2) SINGLE CUPS, ONE CONE, ONE SETSCREW COLLAR |
| BORE DIAMETER | 3.0000 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 5.1172 INCHES NOMINAL |
| OUTER RING WIDTH | 3.3700 INCHES NOMINAL |
| INNER RING WIDTH | 4.0070 INCHES NOMINAL |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | PRESSED |
| INTERNAL FIT-UP DESIGNATION | STANDARD |
