Part Details | ANNULAR BALL BEARING
3110-00-421-9148 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.
Alternate Parts: 2040111181, 204-011-118-1, 204011118, 204-011-118, 2040111181, 204-011-118-1, 2040111181, 204-011-118-1, GDW6100M, GDW6-100M, GDW62E7402, GDW6-2E7402, 2040111181, 204-011-118-1, 2040111181, 204-011-118-1, DW61, DW6-1, GDW62E7402, GDW6-2E7402, 3110-00-421-9148, 00-421-9148, 3110004219148, 004219148
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | DEC 21, 1970 | 00-421-9148 | 00014 ( BEARING, BALL, ANNULAR ) |
REFERENCE DRAWINGS & PICTURES

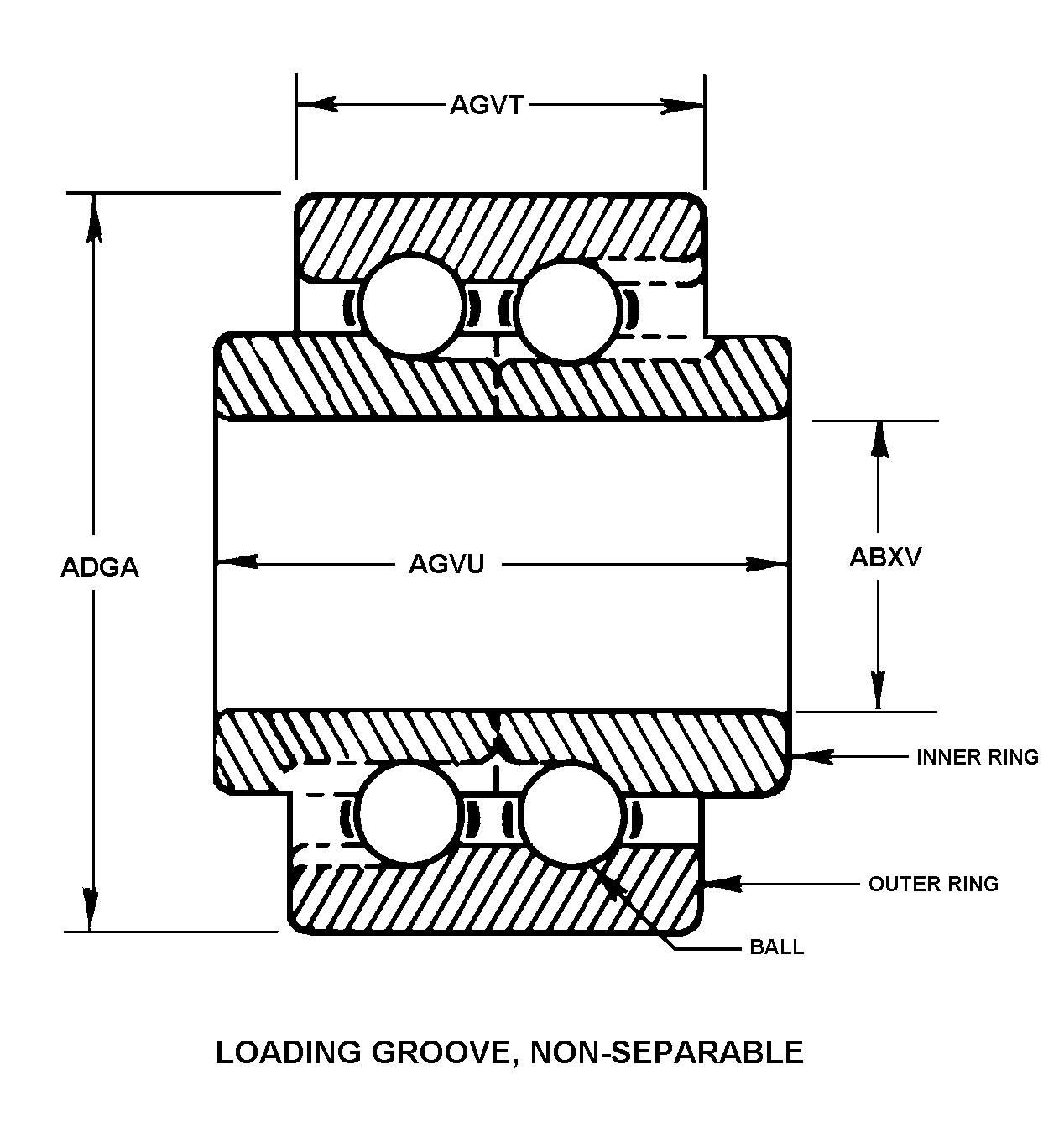

LOADING GROOVE, NON-SEPARABLE
Cross Reference | NSN 3110-00-421-9148
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 204-011-118-1 | 97499 | BELL HELICOPTER TEXTRON INC.DBA BELL HELICOPTER |
| 204-011-118 | 97499 | BELL HELICOPTER TEXTRON INC.DBA BELL HELICOPTER |
| 204-011-118-1 | 92563 | MCGILL MANUFACTURING COMPANY, INC. |
| 204-011-118-1 | 40920 | MPB CORPORATIONDBA TIMKEN SUPER PRECISION |
| GDW6-100M | 40920 | MPB CORPORATIONDBA TIMKEN SUPER PRECISION |
| GDW6-2E7402 | 3NPS1 | RBC AIRCRAFT PRODUCTS, INC. |
| 204-011-118-1 | D0216 | RUAG AEROSPACE SERVICES GMBHDBA AIRCRAFT SERVICES NETWORK |
| 204-011-118-1 | 38443 | SKF USA INC.DBA SKF AEROENGINE NORTH AMERICA |
| DW6-1 | 38443 | SKF USA INC.DBA SKF AEROENGINE NORTH AMERICA |
| GDW6-2E7402 | 21335 | TIMKEN COMPANY, THEDIV TIMKEN AEROSPACE |
Technical Data | NSN 3110-00-421-9148
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | LOADING GROOVE, NON-SEPARABLE |
| BORE DIAMETER | 0.3744 INCHES MINIMUM AND 0.3747 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 1.0620 INCHES MINIMUM AND 1.0625 INCHES MAXIMUM |
| OUTER RING WIDTH | 1.0575 INCHES MINIMUM AND 1.0625 INCHES MAXIMUM |
| INNER RING WIDTH | 1.1825 INCHES MINIMUM AND 1.1875 INCHES MAXIMUM |
| INTERNAL FIT-UP CONTACT ANGULAR DIRECTION | OUTWARD CONVERGENT |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | MIL-G-25537 MIL SPEC SINGLE MATERIAL RESPONSE |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | UNGROUND |
| LOAD DIRECTION | ANGULAR |
| INTERNAL CLEARANCE | D0.0030 INCHES NOMINAL |
| CONTACT ANGLE | 20.0 DEGREES NOMINAL |
