Part Details | CYLINDER HONE STONE AND HOLDER
3460-01-026-4781 A mounted length of abrasive or combination of abrasive and cork. The stone is integral with the mount for use in conjunction with a cylinder honing tool.
Alternate Parts: P28J63, P28-J63, 3460-01-026-4781, 01-026-4781, 3460010264781, 010264781
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 34 | AUG 25, 1976 | 01-026-4781 | 08053 ( STONE AND HOLDER, CYLINDER HONE ) |
REFERENCE DRAWINGS & PICTURES
RECTANGULAR, ROUNDED TOP

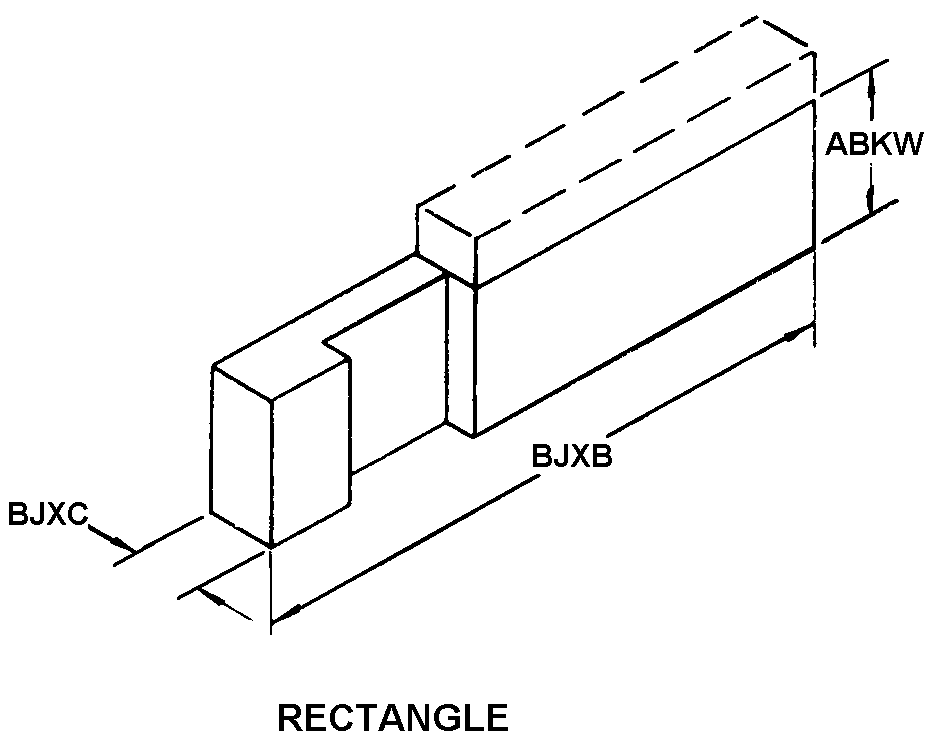

RECTANGLE
Cross Reference | NSN 3460-01-026-4781
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| P28-J63 | 58436 | SUNNEN PRODUCTS COMPANYDBA SUNNEN ABRASIVES & LUBRICANTS |
Technical Data | NSN 3460-01-026-4781
| Characteristic | Specifications |
|---|---|
| STONE STYLE | 0 RECTANGULAR, ROUNDED TOP |
| OVERALL LENGTH | 3.281 INCHES NOMINAL |
| OVERALL WIDTH | 1.640 INCHES NOMINAL |
| CORK FILLER | NOT INCLUDED |
| HOLDER STYLE DESIGNATOR | 4 RECTANGLE |
| OVERALL HEIGHT | 1.640 INCHES NOMINAL |
| HOLDER OVERALL LENGTH | 3.281 INCHES NOMINAL |
| ABRASIVE MATERIAL | SILICON CARBIDE |
| GRIT CLASS | FINE |
| ABRASIVE BOND TYPE | G$H |
| ABRASIVE BOND GRADE DESIGNATION | J SOFT |
