NSN 3610-00-221-4422

Part Details | LITHOGRAPHIC COPYING CAMERA

3610-00-221-4422 A CAMERA, STILL PICTURE designed for use in the graphic arts to make accurate, distortion-free copies from flat surface subject matter upon sensitized material.

Alternate Parts: MILC43214, 3610-00-221-4422, 00-221-4422, 3610002214422, 002214422

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
36JUN 25, 196900-221-442218934 ( CAMERA, COPYING, LITHOGRAPHIC )
REFERENCE DRAWINGS & PICTURES

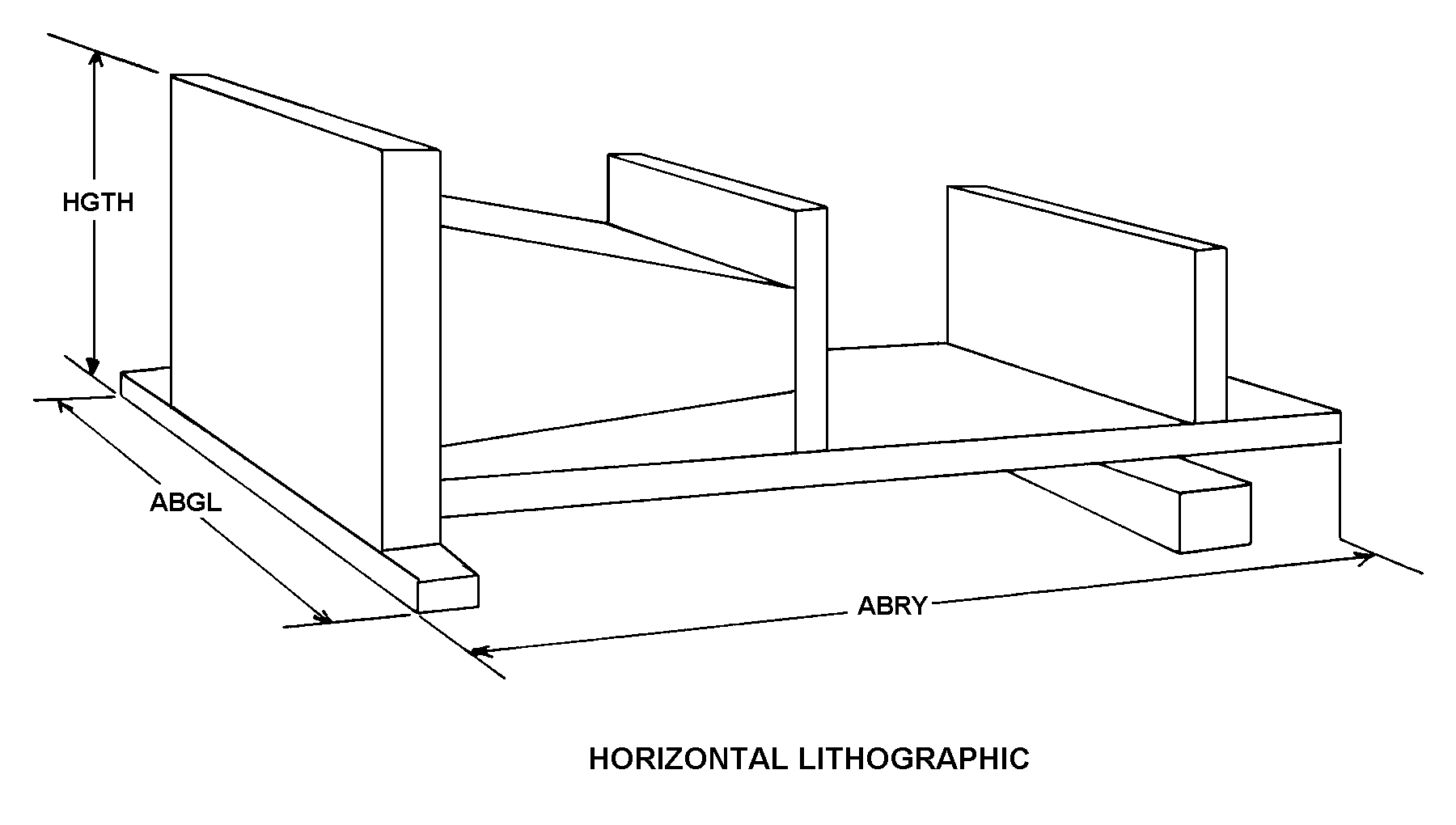

HORIZONTAL LITHOGRAPHIC

Cross Reference | NSN 3610-00-221-4422
Part Number Cage Code Manufacturer
MILC4321481349MILITARY SPECIFICATIONSPROMULGATED BY MILITARY
Technical Data | NSN 3610-00-221-4422
Characteristic Specifications
CAMERA TYPE DARKROOM
LENS FOCAL LENGTH19.000 INCHES NOMINAL
MAXIMUM REDUCTION RATIO 5 TO 1
MAXIMUM ENLARGEMENT RATIO 1 TO 2.0
LENS APERTURE SETTING RANGEP11.0/P90.0
STYLE DESIGNATOR HORIZONTAL LITHOGRAPHIC
WIDTH53.000 INCHES NOMINAL
LENGTH210.000 INCHES NOMINAL
HEIGHT98.000 INCHES NOMINAL
CAMERA MOUNTING TYPE FIXED
FILM ACCOMMODATION TYPE CUT FILM
FILM WIDTH4.00 INCHES MINIMUM AND 24.00 INCHES MAXIMUM
FILM LENGTH0.417 FEET MINIMUM AND 2.000 FEET MAXIMUM
NEGATIVE WIDTH4.000 INCHES MINIMUM AND 24.000 INCHES MAXIMUM
NEGATIVE LENGTH5.000 INCHES MINIMUM AND 24.000 INCHES MAXIMUM
EXPOSURE QUANTITY ACCOMMODATED1
FOCUS METHOD LEAD SCREW
VIEWFINDER TYPE GROUND GLASS BACK
LENS MOUNTING METHOD BOARD
STRUCTURAL DESIGN BED SUPPORTED MOUNTED ON MONORAIL
FILM HOLDER TYPE VACUUM BACK
COPY BOARD TYPE SPRING BACK
COPY BOARD MAXIMUM WIDTH34.0 INCHES
COPY BOARD MAXIMUM LENGTH44.0 INCHES
VACUUM PUMP MOTOR VOLTAGE RATING120.0 ALTERNATING CURRENT
VACUUM PUMP MOTOR CURRENT FREQUENCY IN HERTZ60.0
VACUUM PUMP MOTOR PHASE SINGLE
ILLUMINATED COPY BOARD VOLTAGE RATING120.0 ALTERNATING CURRENT
ILLUMINATED COPY BOARD CURRENT FREQUENCY IN HERTZ60.0
FOCUSING DRIVE MOTOR VOLTAGE RATING120.0 ALTERNATING CURRENT
FOCUSING DRIVE MOTOR CURRENT FREQUENCY IN HERTZ60.0
FOCUSING DRIVE MOTOR PHASE SINGLE
NONDEFINITIVE SPEC/STD DATA3 SIZE
