Part Details | FRICTION LINING
3810-01-169-1961 A fibrous and/or metallic material with or without binders and/or compounds, cut or molded to a specific size. It may be a segment or a complete lining. It is usually designed to be fastened to a shoe, disk, band, cone, or the like, but may be installed without fastening. It provides a friction surface for transmitting, retarding, or stopping motion. Excludes LINING MATERIAL, FRICTION.
Alternate Parts: 15U86, 15U86C1, 15U86-C1, 3810-01-169-1961, 01-169-1961, 3810011691961, 011691961
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 38 | JAN 04, 1984 | 01-169-1961 | 11405 ( LINING, FRICTION ) |
REFERENCE DRAWINGS & PICTURES

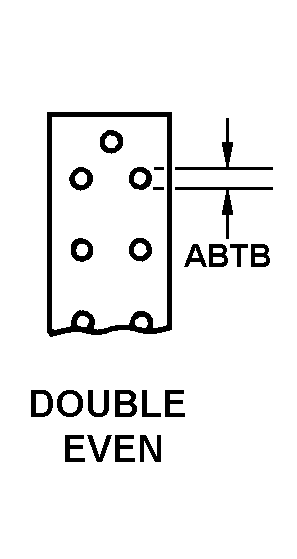

DOUBLE EVEN
SEGMENT PLAIN
Cross Reference | NSN 3810-01-169-1961
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 15U86 | 27315 | MORRIS MATERIAL HANDLING, INC. |
| 15U86-C1 | 0LRM3 | TEREX CORP |
Technical Data | NSN 3810-01-169-1961
| Characteristic | Specifications |
|---|---|
| FRICTION LINING MATERIAL | METALLIC |
| FABRICATION METHOD | M ANY ACCEPTABLE |
| STRENGTHENING FEATURE | INTERNALLY MOLDED-IN REINFORCEMENT |
| LINING STYLE | SEGMENT PLAIN |
| WIDTH | 4.000 INCHES NOMINAL |
| THICKNESS | 0.375 INCHES NOMINAL |
| ARC LENGTH | 7.875 INCHES NOMINAL |
| MINOR RADIUS | 15.000 INCHES NOMINAL |
| ATTACHMENT METHOD | RIVETED |
| HOLE ARRANGEMENT STYLE | DOUBLE EVEN |
| MOUNTING HOLE DIAMETER | 0.328 INCHES NOMINAL |
| HOLE TYPE AND QUANTITY | 7 COUNTERBORED |
| END ITEM IDENTIFICATION | 3810-01-145-8288 |
