Part Details | PAVING BREAKER
3820-01-003-6451 A powered hand tool used for clay digging, breaking frozen ground, demolition of concrete paving, and the like. The unit has a non-rotating chuck through which a piston, or any other percussion system, imparts hammer-like blows to various types of accessories such as chisels, spades, picks, backfill tamping pads, and frost wedges. When provided with certain attachments, the unit may also be used as a sheeting and piling driver, drift bolt driver, or spike driver. See also DRILL, PNEUMATIC, DRIFTER; and DRILL, PNEUMATIC, SINKER.
Alternate Parts: BBM47SPA, 3820-01-003-6451, 01-003-6451, 3820010036451, 010036451
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 38 | MAY 01, 1975 | 01-003-6451 | 13600 ( BREAKER, PAVING ) |
REFERENCE DRAWINGS & PICTURES
STRAIGHT HEXAGON

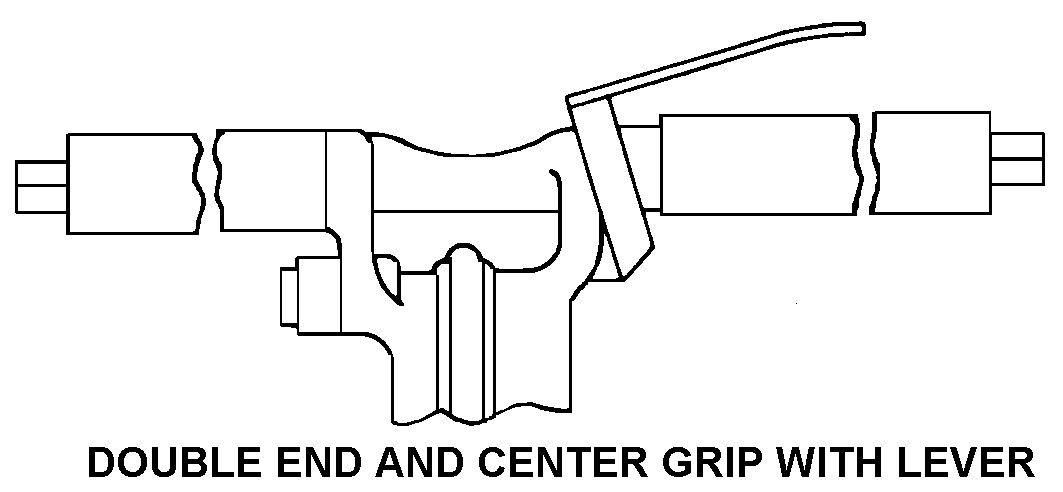

DOUBLE END AND CENTER GRIP WITH LEVER
Cross Reference | NSN 3820-01-003-6451
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| BBM47SPA | S3632 | ATLAS COPCO CONSTRUCTION TOOLS AB |
Technical Data | NSN 3820-01-003-6451
| Characteristic | Specifications |
|---|---|
| PRIME MOVER TYPE | GASOLINE ENGINE |
| MANUFACTURER NAME | ATLAS COPCO A B |
| MANUFACTURER IDENTIFYING NUMBER | BBM47SPA |
| HANDLE STYLE | DOUBLE END AND CENTER GRIP WITH LEVER |
| ACCESSORY COMPONENTS | DEMOLITION TOOL CHUCK |
| TOOL RETAINER TYPE | D ANY ACCEPTABLE |
| SHANK STYLE | STRAIGHT HEXAGON |
| WIDTH ACROSS FLATS | 0.875 INCHES NOMINAL |
| SHANK OVERALL LENGTH | 4.300 INCHES NOMINAL |
| WEIGHT | PA51.0 |
| CONVERSION FEATURE FOR SINKER DRILL OPERATION | NOT INCLUDED |
