Part Details | MATERIAL HANDLING SKIP BOX
3990-01-399-5133 A rectangular receptacle designed for loading and unloading cargo on and off ships. The sides and/or ends may be hinged or removable to facilitate loading and unloading. It is usually mounted on stringers to permit handling by forklift trucks. Slings or bridles may be provided for hoisting.
Alternate Parts: C484034BLACK, C484034-BLACK, 3990-01-399-5133, 01-399-5133, 3990013995133, 013995133
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 39 | NOV 28, 1994 | 01-399-5133 | 06194 ( SKIP BOX, MATERIAL HANDLING ) |

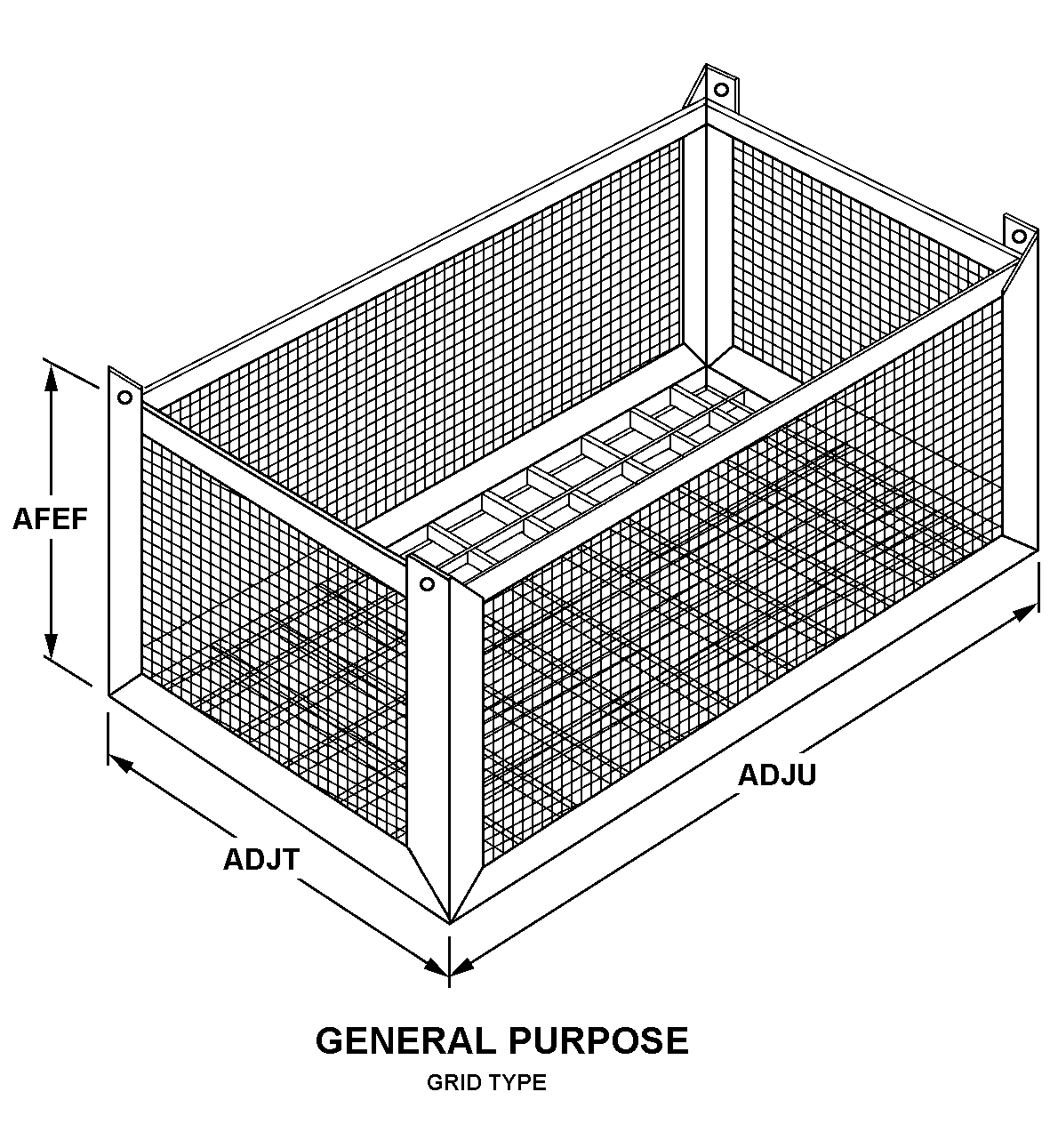

REFERENCE DRAWINGS & PICTURES
GENERAL PURPOSE GRID TYPE
Cross Reference | NSN 3990-01-399-5133
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| C484034-BLACK | 0REC3 | SCHOELLER ARCA SYSTEMS INC. |
Technical Data | NSN 3990-01-399-5133
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | GENERAL PURPOSE GRID TYPE |
| INSIDE LENGTH | 48.000 INCHES NOMINAL |
| INSIDE WIDTH | 40.000 INCHES NOMINAL |
| EXTERIOR COLOR | BLACK |
| INTERIOR COLOR | BLACK |
