Part Details | HOIST HOOK
4030-00-871-1334 A strongly constructed metal item having a relatively narrow, shallow throat. It may or may not have a safety throat closure. Excludes HOOK, LOGGING LINE and HOOK, CARGO.
Alternate Parts: 1050221, 10002C, 1000-2C, 2C, 2, 4030-00-871-1334, 00-871-1334, 4030008711334, 008711334
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | JAN 01, 1962 | 00-871-1334 | 11154 ( HOOK, HOIST ) |
REFERENCE DRAWINGS & PICTURES

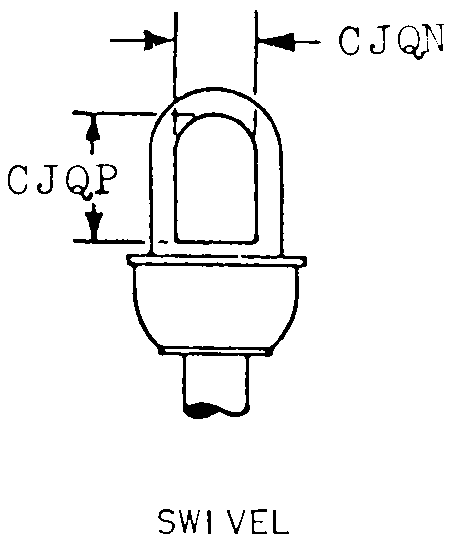

SWIVEL
REGULAR
Cross Reference | NSN 4030-00-871-1334
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1050221 | 75535 | CROSBY GROUP INCDBA NATIONAL SWAGE |
| 1000-2C | 09729 | E. D. BULLARD COMPANY |
| 2C | 09729 | E. D. BULLARD COMPANY |
| 2 | 09729 | E. D. BULLARD COMPANY |
Technical Data | NSN 4030-00-871-1334
| Characteristic | Specifications |
|---|---|
| MATERIAL | 9$DST1030 |
| MATERIAL DOCUMENT AND CLASSIFICATION | SAE ASSN STD ALL MATERIAL RESPONSES |
| STYLE DESIGNATOR | REGULAR |
| CONNECTION STYLE | SWIVEL |
| CONNECTION INSIDE WIDTH | 1.125 INCHES NOMINAL |
| CONNECTION INSIDE LENGTH | 1.438 INCHES NOMINAL |
| CONNECTION TO BODY RELATIONSHIP | PARALLEL |
| SAFE OPERATING LOAD RATING | 1600.000 POUNDS MINIMUM |
| FEATURES PROVIDED | OUTWARD SAFETY THROAT CLOSURE |
