NSN 4030-01-331-7829

Part Details | S CHAIN HOOK

4030-01-331-7829 A wire formed in the shape of the letter S, used to attach wire chain to other objects.

Alternate Parts: 9377T12, 9377T12, 4030-01-331-7829, 01-331-7829, 4030013317829, 013317829

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
40DEC 27, 199001-331-782902634 ( HOOK, CHAIN, S )

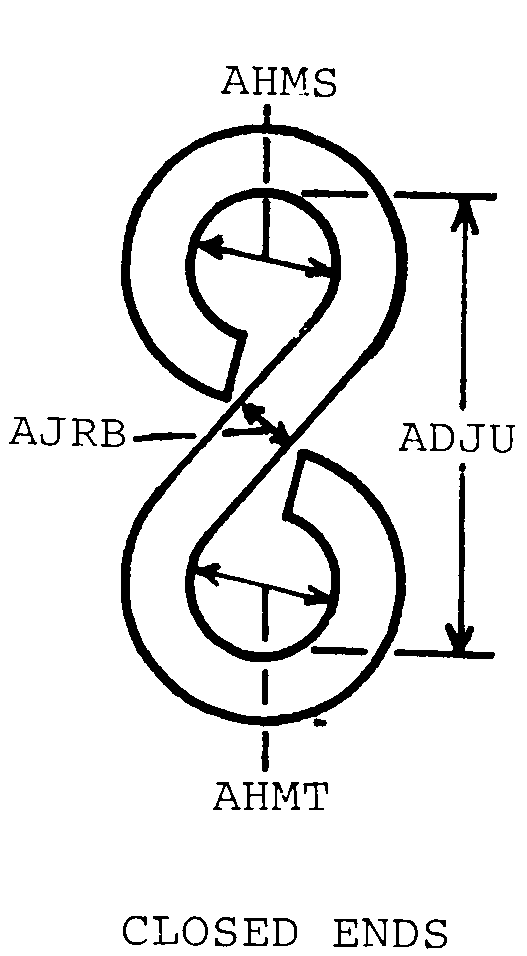

REFERENCE DRAWINGS & PICTURES

CLOSED ENDS

Cross Reference | NSN 4030-01-331-7829
Part Number Cage Code Manufacturer
9377T1239428MCMASTER-CARR SUPPLY COMPANY
9377T1246156PEERLESS CHAIN COMPANYDIV PEERLESS CHAIN CO
Technical Data | NSN 4030-01-331-7829
Characteristic Specifications
MATERIAL STEEL
SURFACE TREATMENT CHROMATE ZINC
STYLE DESIGNATOR CLOSED ENDS
INSIDE LENGTH1.290 INCHES NOMINAL
UPPER LOOP INSIDE DIAMETER0.500 INCHES NOMINAL
LOWER LOOP INSIDE DIAMETER0.500 INCHES NOMINAL
MATERIAL DIAMETER0.105 INCHES NOMINAL
