Part Details | FIRE EXTINGUISHING SYSTEM TUBE ASSEMBLY
4210-01-469-9951 A length of tubing, straight or prebent to a predetermined angle, with added components that form an end connection on one or both ends, and has been perforated at intervals along the length, and/or one end has been capped with sheet metal and then perforated. For use in aircraft, automotive equipment, or building fire extinguishing systems. Excludes TUBE ASSEMBLY, FIRE EXTINGUISHING SYSTEM, BRANCHED.
Alternate Parts: 124632653, 12463265-3, 4210-01-469-9951, 01-469-9951, 4210014699951, 014699951
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 42 | DEC 03, 1999 | 01-469-9951 | 61614 ( TUBE ASSEMBLY, FIRE EXTINGUISHING SYSTEM ) |
REFERENCE DRAWINGS & PICTURES

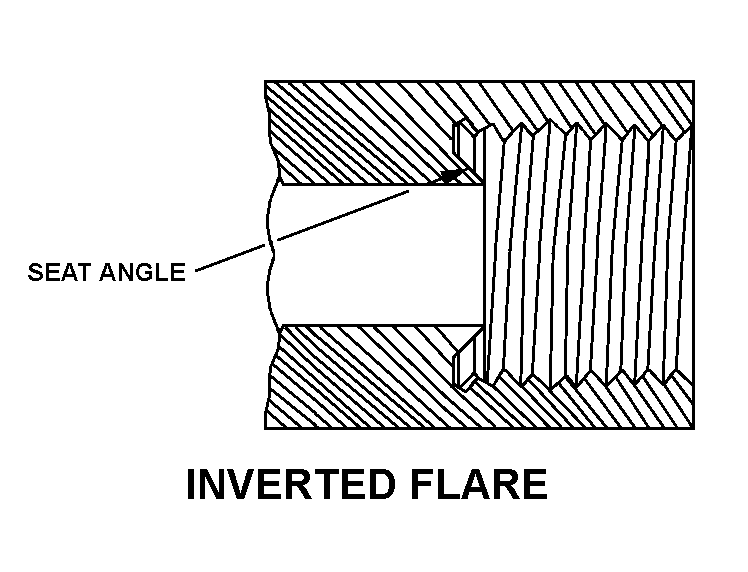

INVERTED FLARE
Cross Reference | NSN 4210-01-469-9951
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12463265-3 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 4210-01-469-9951
| Characteristic | Specifications |
|---|---|
| TUBING MATERIAL | STEEL, ASTM A269 |
| TUBE OUTSIDE DIAMETER | 0.500 INCHES NOMINAL |
| WALL THICKNESS | 0.065 INCHES NOMINAL |
| END CONNECTION STYLE | 7 INVERTED FLARE |
| DESIGN FORM | STRAIGHT |
| OVERALL LENGTH | 1.500 INCHES NOMINAL |
| END ITEM IDENTIFICATION | FIELD ARTILLERY AMMUNITION SUPPORT VEHICLE |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | TUBE ASSEMBLY, ENGINE AFES |
