Part Details | AIR BREATHING AIR DUCT HOSE ASSEMBLY
4240-01-449-5842 A length of HOSE, AIR DUCT, AIR BREATHING which may have end couplings on one or both end/or incorporates a communication cable. It is designed for use in breathing oxygen system, air line masks, gas masks, and the like. Excludes items which include the branch or fork hoses; assemblies made up of the oxygen breathing hose, communication cable, wiring for face mask heater, and vent and pressure ducts for the anti-Gsuit and HOSE ASSEMBLY, NONMETALLIC.
Alternate Parts: 80433601, 804336-01, 80433601, 804336-01, 4240-01-449-5842, 01-449-5842, 4240014495842, 014495842
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 42 | OCT 07, 1997 | 01-449-5842 | 30600 ( HOSE ASSEMBLY, AIR DUCT, AIR BREATHING ) |
REFERENCE DRAWINGS & PICTURES
ROUND

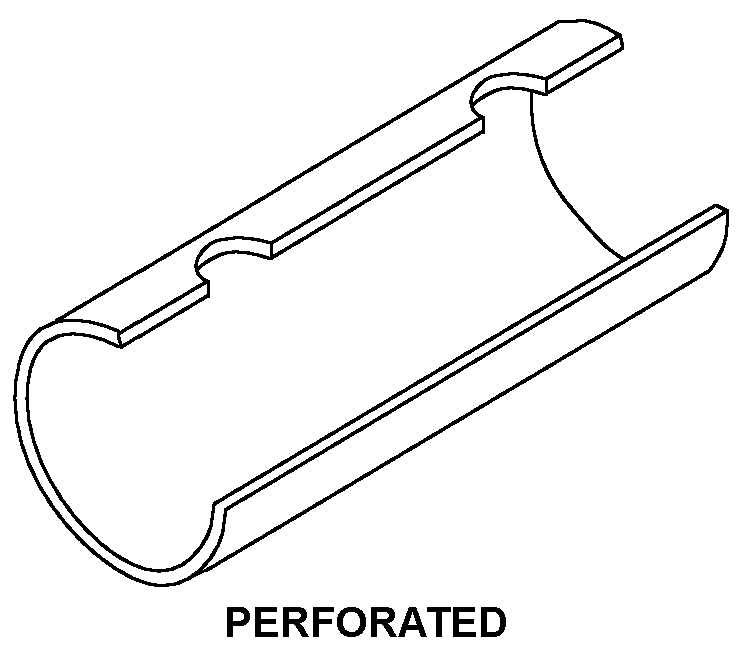

PERFORATED
Cross Reference | NSN 4240-01-449-5842
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 804336-01 | 53655 | AVOX SYSTEMS INC. |
| 804336-01 | 15927 | SCOTT TECHNOLOGIES, INC.DBA SCOTT SAFETY |
Technical Data | NSN 4240-01-449-5842
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | PERFORATED |
| CROSS-SECTIONAL SHAPE STYLE | ROUND |
| SPECIAL FEATURES | LOW PRESSURE HOSE ASSEMBLY, FABRIC BRAID REINFORCED NEOPRENE OR BUNA LINER WITH PERFORATED NEOPRENE JACKET |
| END ITEM IDENTIFICATION | SCOTT E-Z FLOW REGULATOR ASSEMBLY REF NO. 804370-01 |
