Part Details | FLUID COOLER CORE ASSEMBLY
4420-01-179-3071 An assembled unit which may consist of tubes, tube sheets, baffles and fins which comprise the basic heat transfer element of a COOLER, FLUID, TRANSMISSION and COOLER, FLUID, INDUSTRIAL. Excludes automotive radiators.
Alternate Parts: 53408928000, 534-08928-000, 5348928, 534-8928, 53408928000, 534-08928-000, 4420-01-179-3071, 01-179-3071, 4420011793071, 011793071
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 44 | MAY 16, 1984 | 01-179-3071 | 36982 ( CORE ASSEMBLY, FLUID COOLER ) |
REFERENCE DRAWINGS & PICTURES

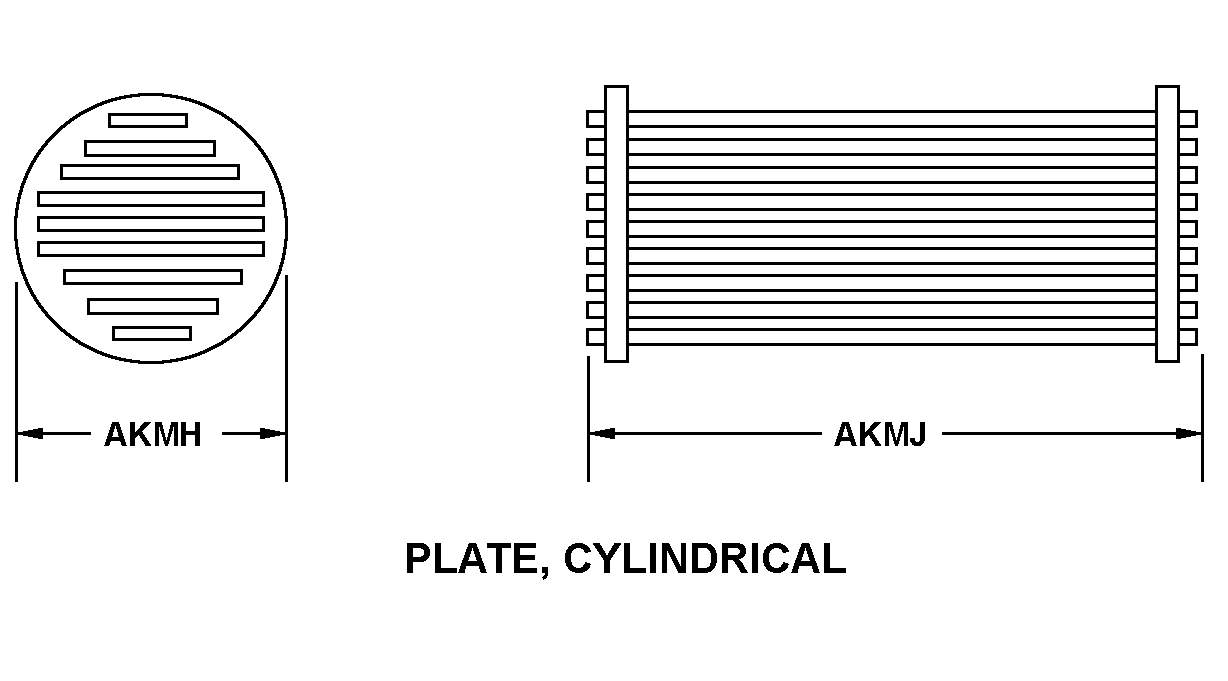

PLATE, CYLINDRICAL
Cross Reference | NSN 4420-01-179-3071
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 534-08928-000 | 09647 | AQUA-CHEM INC. |
| 534-8928 | 09647 | AQUA-CHEM INC. |
| 534-08928-000 | 0EXU3 | AQUA-CHEM, INC. |
Technical Data | NSN 4420-01-179-3071
| Characteristic | Specifications |
|---|---|
| MATERIAL THICKNESS | 0.088 INCHES NOMINAL |
| STYLE DESIGNATOR | PLATE, CYLINDRICAL |
| CORE LENGTH | 36.500 INCHES NOMINAL |
| HEAT TRANSFER METHOD | INDIRECT |
| TUBE QUANTITY | 15 |
| TUBING OUTSIDE DIAMETER | 0.250 INCHES |
| TUBE ATTACHMENT METHOD | ANY ACCEPTABLE |
