Part Details | INDUSTRIAL FLUID COOLER BONNET
4420-01-196-9150 An item designed to be attached to a SHELL, FLUID COOLER, INDUSTRIAL to provide direction of flow with minimum impact on tube ends and TUBE SHEET, FLUID COOLER, INDUSTRIAL and provide access to tubes without removal of piping.
Alternate Parts: 110M1066A3, 310421080703, 3-104-2-10-807-03, 110M1066A3, 6E10X109, 310421080703, 3-104-2-10-807-03, 110M1066A3 PIECE 4, 4420-01-196-9150, 01-196-9150, 4420011969150, 011969150
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 44 | DEC 15, 1984 | 01-196-9150 | 37495 ( BONNET, FLUID COOLER, INDUSTRIAL ) |

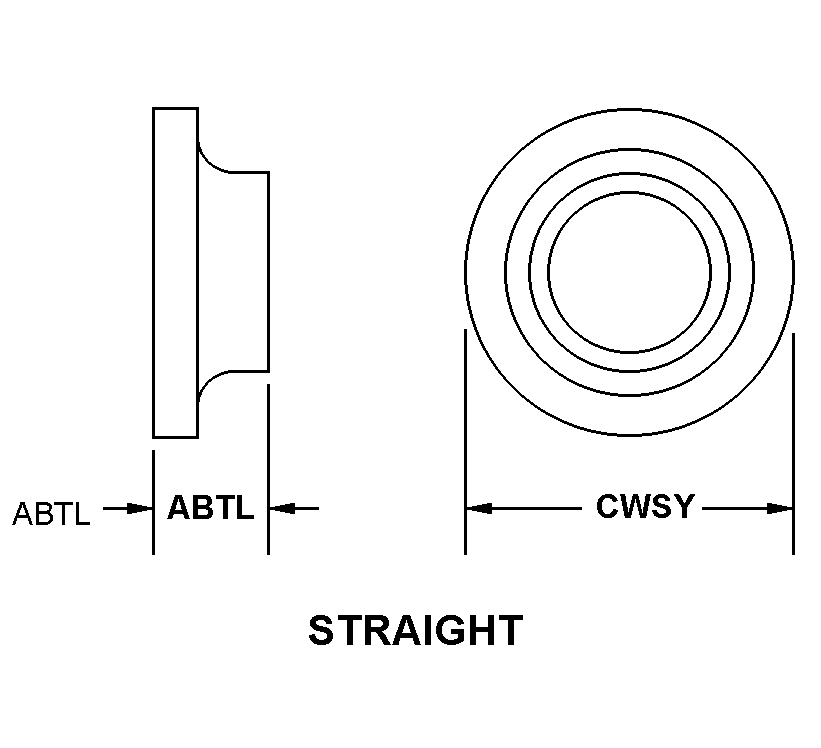

REFERENCE DRAWINGS & PICTURES
STRAIGHT
Cross Reference | NSN 4420-01-196-9150
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 110M1066A3 | 6LE50 | FLUID HANDLING, LLCDBA STANDARD XCHANGE |
| 3-104-2-10-807-03 | 6LE50 | FLUID HANDLING, LLCDBA STANDARD XCHANGE |
| 110M1066A3 | 51900 | ITT CORPORATIONDBA ITT STANDARD |
| 6E10X109 | 51900 | ITT CORPORATIONDBA ITT STANDARD |
| 3-104-2-10-807-03 | 51900 | ITT CORPORATIONDBA ITT STANDARD |
| 110M1066A3 PIECE 4 | 51900 | ITT CORPORATIONDBA ITT STANDARD |
Technical Data | NSN 4420-01-196-9150
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | STRAIGHT |
| DIAMETER | 14.000 INCHES NOMINAL |
| FLOW TYPE | TWO PASS |
