Part Details | INDUSTRIAL FLUID COOLER BONNET
4420-01-345-5820 An item designed to be attached to a SHELL, FLUID COOLER, INDUSTRIAL to provide direction of flow with minimum impact on tube ends and TUBE SHEET, FLUID COOLER, INDUSTRIAL and provide access to tubes without removal of piping.
Alternate Parts: 309320811504, 3-093-2-08-115-04, 514208030040 PC 2, 5-142-08-030-040 PC 2, 514208030040, 5-142-08-030-040, 309320811504, 3-093-2-08-115-04, 514208030040 PC 2, 5-142-08-030-040 PC 2, 514208030040, 5-142-08-030-040, 4420-01-345-5820, 01-345-5820, 4420013455820, 013455820
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 44 | SEP 21, 1991 | 01-345-5820 | 37495 ( BONNET, FLUID COOLER, INDUSTRIAL ) |
REFERENCE DRAWINGS & PICTURES

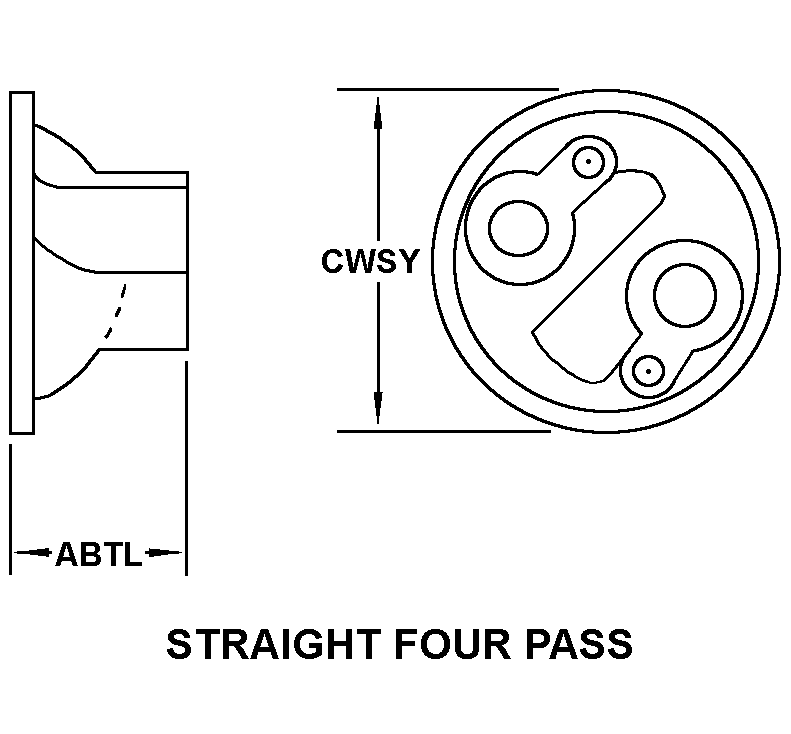

STRAIGHT FOUR PASS
Cross Reference | NSN 4420-01-345-5820
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3-093-2-08-115-04 | 6LE50 | FLUID HANDLING, LLCDBA STANDARD XCHANGE |
| 5-142-08-030-040 PC 2 | 6LE50 | FLUID HANDLING, LLCDBA STANDARD XCHANGE |
| 5-142-08-030-040 | 6LE50 | FLUID HANDLING, LLCDBA STANDARD XCHANGE |
| 3-093-2-08-115-04 | 51900 | ITT CORPORATIONDBA ITT STANDARD |
| 5-142-08-030-040 PC 2 | 51900 | ITT CORPORATIONDBA ITT STANDARD |
| 5-142-08-030-040 | 51900 | ITT CORPORATIONDBA ITT STANDARD |
Technical Data | NSN 4420-01-345-5820
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | STRAIGHT FOUR PASS |
| DIAMETER | 9.750 INCHES NOMINAL |
| LENGTH | 5.250 INCHES NOMINAL |
| FLOW TYPE | FOUR PASS |
| END ITEM IDENTIFICATION | ITT STANDARD MDL.08030 HCFB EXCHANGER |
