Part Details | QUICK DISCONNECT COUPLING ASSEMBLY
4730-00-020-8993 A multipiece fluid line fitting consisting of two COUPLING HALF, QUICK DISCONNECT fittings.
Alternate Parts: 3009900928, SSH8 6263, SSH8 62-63, LL8HK3636, 4730-00-020-8993, 00-020-8993, 4730000208993, 000208993
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | JAN 01, 1961 | 00-020-8993 | 20671 ( COUPLING ASSEMBLY, QUICK DISCONNECT ) |
REFERENCE DRAWINGS & PICTURES

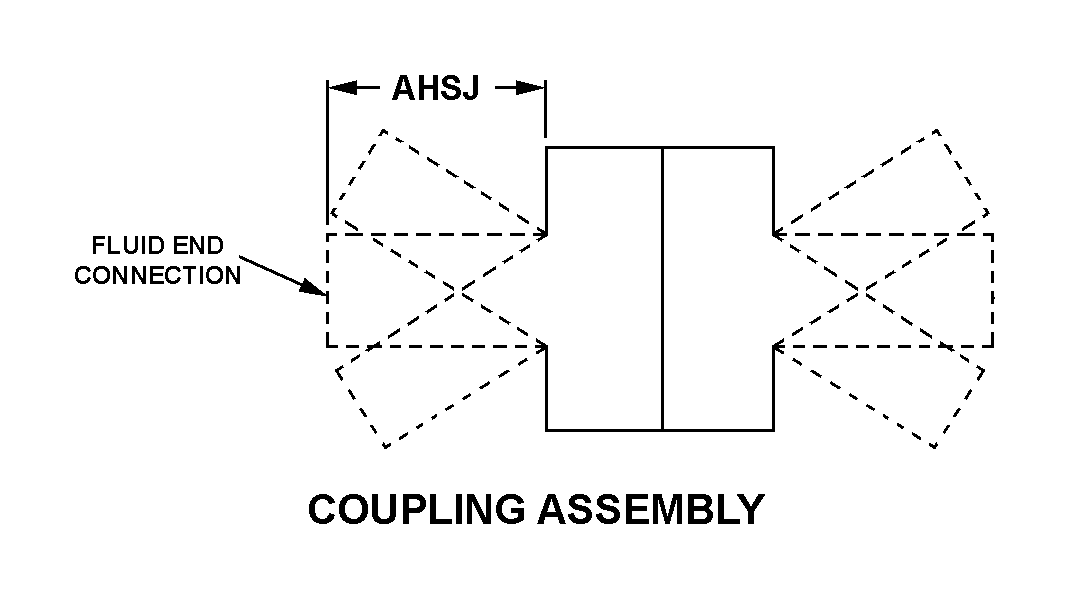

COUPLING ASSEMBLY
Cross Reference | NSN 4730-00-020-8993
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3009900928 | 57057 | NAVCOM DEFENSE ELECTRONICS, INC. |
| SSH8 62-63 | 97111 | PARKER-HANNIFIN CORPORATIONDBA QUICK COUPLING DIV |
| LL8HK3636 | 73992 | TUTHILL CORPHANSEN COUPLING DIV |
Technical Data | NSN 4730-00-020-8993
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | COUPLING ASSEMBLY |
| LEG LENGTH | 0.781 INCHES NOMINAL |
| OVERALL LENGTH | 5.781 INCHES NOMINAL |
| FEATURES PROVIDED | SELF-SEALING |
