4730-01-230-4034 A sectional metal pipe whose lower or base section is enlarged to cover an underground valve. The primary purpose is to provide an open shaft which will allow the insertion of the service box valve key.
Alternate Parts: 515524, 5-155-24, 4730-01-230-4034, 01-230-4034, 4730012304034, 012304034
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | APR 12, 1986 | 01-230-4034 | 13471 ( SERVICE BOX, VALVE ) |
REFERENCE DRAWINGS & PICTURES

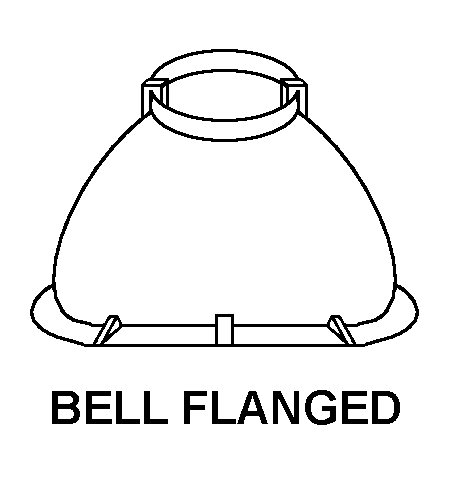

BELL FLANGED
BELL FLANGED
Cross Reference | NSN 4730-01-230-4034
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5-155-24 | 30615 | UNITED STATES FILTERSPLYMOUTH PRODUCTS DIV |
Technical Data | NSN 4730-01-230-4034
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC |
| SHAFT DIAMETER | 5.2500 INCHES NOMINAL |
| OVERALL LENGTH | 39.500 INCHES NOMINAL |
| SECTION QUANTITY | 2 |
| BOX TYPE | SLIP |
| UPPER SECTION HEAD SHAPE | ROUND |
| UPPER SECTION HEAD THREAD PROVISION | UNTHREADED |
| EXTENSION SECTION | NOT INCLUDED |
| BASE STYLE | BELL FLANGED |
| ADDITIONAL BASE FOR LOWER SECTION | NOT INCLUDED |
| LID | INCLUDED |
| LID TYPE | LOCK |
| LID UPPER SECTION DIAMETER | 7.438 INCHES NOMINAL |
| MARKINGS | WATER |
| ROD | NOT INCLUDED |
| SPECIAL FEATURES | POLYIRON MATERIAL |
