Part Details | SPECIAL SHAPED ACTUATOR VALVE DIAPHRAGM
4810-00-409-3921 An item constructed of one or more layers of thin flexible material, either laminated or separated, designed to form a tight seal between the chambers of a valve, and to transmit pressure inducted motion to a valve disk either directly or through a mechanical linkage. The surface of the item must be formed or molded to have a beaded or rolled edge, ribs or any other raised surfaces. The item may contain bolt holes and/or center holes. Excludes DIAPHRA GM, VALVE, FLAT and GASKET.
Alternate Parts: 236172R1, 4810-00-409-3921, 00-409-3921, 4810004093921, 004093921
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | JUL 17, 1970 | 00-409-3921 | 40088 ( DIAPHRAGM, ACTUATOR VALVE, SPECIAL SHAPED ) |

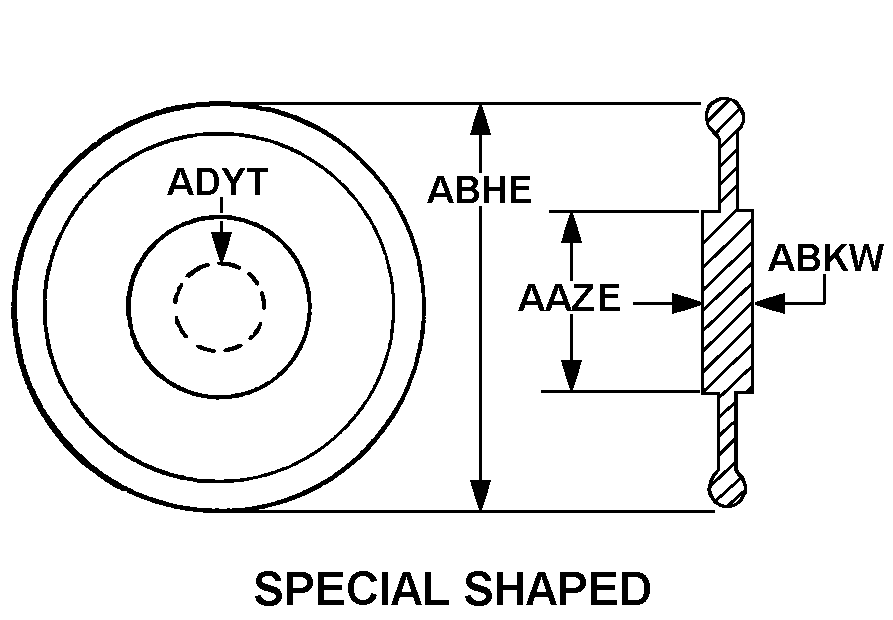

REFERENCE DRAWINGS & PICTURES
H
Cross Reference | NSN 4810-00-409-3921
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 236172R1 | 89346 | NAVISTAR INTL CORP TRUCK BR OHIOPLANT |
Technical Data | NSN 4810-00-409-3921
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | H |
| MEDIA FOR WHICH DESIGNED | AIR |
| END ITEM IDENTIFICATION | TRUCK,HEAVY DUTY,INTERNATIONAL HARVESTER CORP. MODELS 1610A,1630A |
