Part Details | SPECIAL SHAPED ACTUATOR VALVE DIAPHRAGM
4810-00-418-4873 An item constructed of one or more layers of thin flexible material, either laminated or separated, designed to form a tight seal between the chambers of a valve, and to transmit pressure inducted motion to a valve disk either directly or through a mechanical linkage. The surface of the item must be formed or molded to have a beaded or rolled edge, ribs or any other raised surfaces. The item may contain bolt holes and/or center holes. Excludes DIAPHRA GM, VALVE, FLAT and GASKET.
Alternate Parts: A6388, 14002040002, 14002040-002, 312204, 4810-00-418-4873, 00-418-4873, 4810004184873, 004184873
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | NOV 23, 1970 | 00-418-4873 | 40088 ( DIAPHRAGM, ACTUATOR VALVE, SPECIAL SHAPED ) |
REFERENCE DRAWINGS & PICTURES

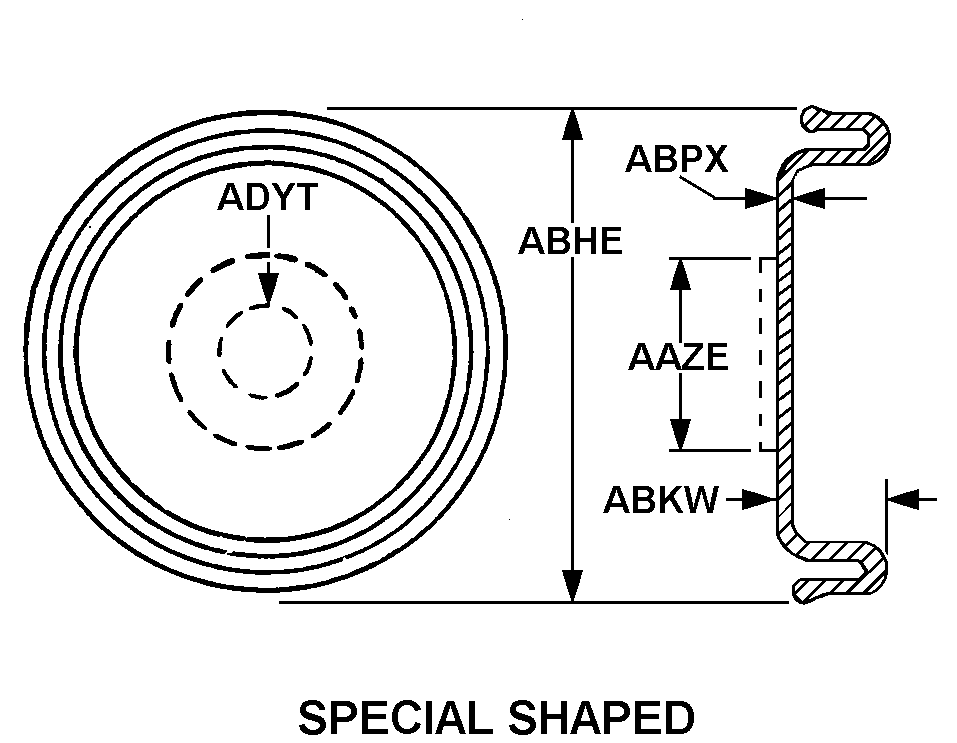

SPECIAL SHAPED
Cross Reference | NSN 4810-00-418-4873
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| A6388 | 03933 | ARMSTRONG INTERNATIONAL, INC. |
| 14002040-002 | 08987 | HONEYWELL INCPROCESS CONTROL DIV |
| 312204 | 08987 | HONEYWELL INCPROCESS CONTROL DIV |
Technical Data | NSN 4810-00-418-4873
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER |
| STYLE DESIGNATOR | SPECIAL SHAPED |
| OUTSIDE DIAMETER | 6.125 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.075 INCHES NOMINAL |
| CENTER HOLE DIAMETER | 1.125 INCHES NOMINAL |
