Part Details | FLUID PRESSURE REGULATING VALVE
4810-00-541-3258 A valve designed to automatically maintain within close limits a predetermined outlet pressure which may be adjustable within a specified range regardless of the higher fluctuating or constant inlet pressure. It is designed for use with compressed gas(es) and various liquids and may include gauges. It may be inline or cartridge (manifold) design. Excludes REGULATOR, PRESSURE, MEDICAL GAS ADMINISTRATION APPARATUS; REGULATOR, OXYGEN, BAROMETRIC CONTINUOUS FLOW; REGULATOR, OXYGEN DEMAND; REGULATOR, OXYGEN DILUTER DEMAND; and valve(1), fluid pressure regulating, aircraft.
Alternate Parts: EA5000213, EA50002-13, 4810-00-541-3258, 00-541-3258, 4810005413258, 005413258
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | JAN 01, 1963 | 00-541-3258 | 27565 ( VALVE, REGULATING, FLUID PRESSURE ) |
REFERENCE DRAWINGS & PICTURES
TEE
GASKET SEAL

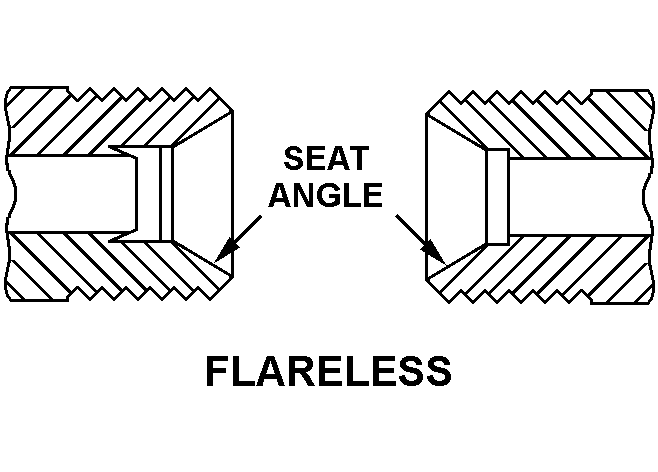

FLARELESS
GASKET SEAL
FLARELESS
GASKET SEAL
FLARELESS
GASKET SEAL
FLARELESS
Cross Reference | NSN 4810-00-541-3258
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| EA50002-13 | 62983 | EATON AEROSPACE LLC |
Technical Data | NSN 4810-00-541-3258
| Characteristic | Specifications |
|---|---|
| BODY MATERIAL | ALUMINUM ALLOY |
| TEMP RATING | 150.0 DEG FAHRENHEIT NOMINAL |
| MAXIMUM INLET PRESSURE RATING | 3000.0 POUNDS PER SQUARE INCH |
| OUTLET PRESSURE RANGE | +700.0 TO +2950.0 POUNDS PER SQUARE INCH |
| FILTER | NOT INCLUDED |
| FSC APPLICATION DATA | HYDRAULIC SYSTEM,AIRCRAFT |
| FLOW CONTROL DEVICE | POPPET |
| OUTSIDE SURFACE TREATMENT | ANODIZED |
| END CONNECTION QUANTITY | 3 |
| FIRST END CONNECTION TYPE | THREADED EXTERNAL TUBE |
| FIRST END STYLE DESIGNATOR | FLARELESS |
| FIRST END OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.375 INCHES NOMINAL |
| FIRST END THREAD SIZE AND SERIES/TYPE DESIGNATOR | 9 TO 16&18 UNF |
| FIRST END THREAD CLASS | 3A |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| FIRST END SEAT ANGLE IN DEG | 12.0 |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END CONNECTION TYPE | THREADED INTERNAL BOSS |
| SECOND END STYLE DESIGNATOR | GASKET SEAL |
| SECOND END THREAD SIZE AND SERIES/TYPE DESIGNATOR | 9 TO 16&18 UNF |
| SECOND END THREAD CLASS | 3B |
| SECOND END THREAD DIRECTION | RIGHT-HAND |
| THIRD END RELATIONSHIP WITH PRECEDING ENDS | IDENTICAL WITH SECOND END |
| BODY STYLE | TEE |
| MEDIA FOR WHICH DESIGNED | HYDRAULIC FLUID, PHOSPHATE-ESTER BASE |
| REGULATION TYPE | AUTOMATIC SINGLE STAGE |
| VALVE LOADING METHOD | SPRING |
