Part Details | PIPE WRENCH
5120-00-063-6502 A wrench having serrated jaws, chain, girth, or strap at one end. It is designed for installing or removing pipe or pipe fittings. Excludes WRENCH, PIPE, INTERNAL GRIPPING.
Alternate Parts: 64145, S24, S-24, 5120-00-063-6502, 00-063-6502, 5120000636502, 000636502
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-063-6502 | 03492 ( WRENCH, PIPE ) |
REFERENCE DRAWINGS & PICTURES

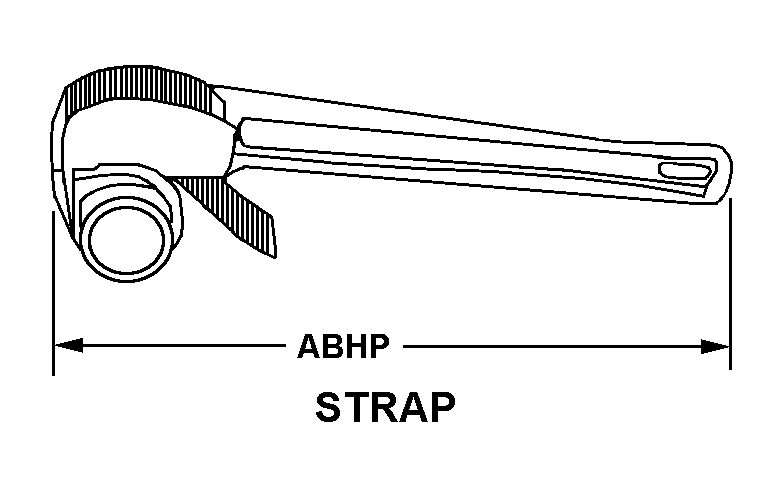

STRAP
Cross Reference | NSN 5120-00-063-6502
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 64145 | 37078 | LOWELL CORPORATIONDBA PORTER-FERGUSON |
| S-24 | 37078 | LOWELL CORPORATIONDBA PORTER-FERGUSON |
Technical Data | NSN 5120-00-063-6502
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | STRAP |
| OVERALL LENGTH | 24.000 INCHES NOMINAL |
| SPECIAL FEATURES | STRAP MATERIAL:POLYESTER;STRAP LENGTH:54 INCHES;STRIP WIDTH:2-1/4 INCHES;WEIGHT:5 POUNDS |
