Part Details | SPANNER WRENCH
5120-00-067-8453 A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG.
Alternate Parts: 9804, TE8453, 5120-00-067-8453, 00-067-8453, 5120000678453, 000678453
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JUL 05, 1967 | 00-067-8453 | 03476 ( WRENCH, SPANNER ) |
REFERENCE DRAWINGS & PICTURES

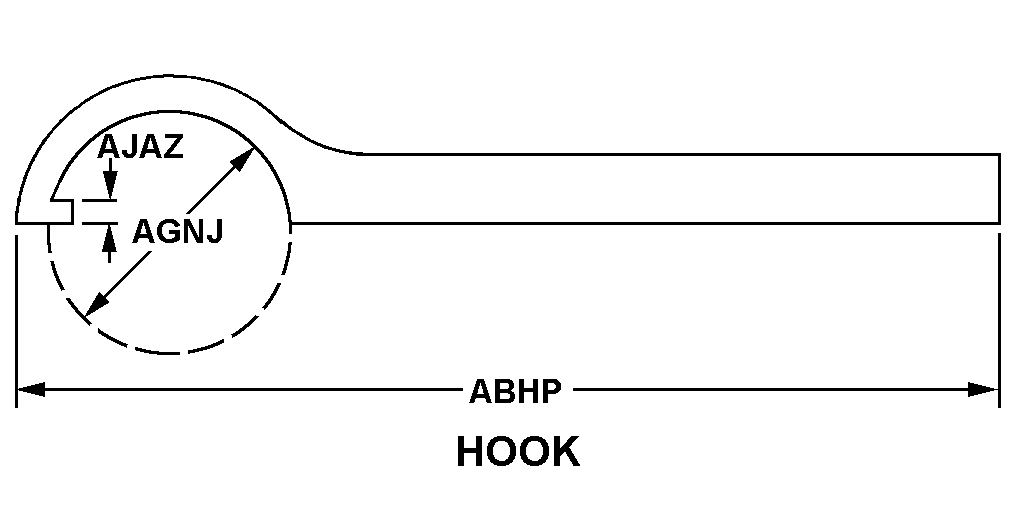

HOOK
Cross Reference | NSN 5120-00-067-8453
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9804 | 35795 | LESLIE CONTROLS, INC. |
| TE8453 | 0FKL0 | TIMBER EDGE MACHINE INC |
Technical Data | NSN 5120-00-067-8453
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | HOOK |
| OVERALL LENGTH | 23.406 INCHES NOMINAL |
| OPENING DIAMETER | 6.656 INCHES MINIMUM AND 6.687 INCHES MAXIMUM |
| HOOK THICKNESS | 0.438 INCHES NOMINAL |
