Part Details | TORQUE WRENCH MULTIPLIER
5120-00-085-5019 A device designed for use in conjunction with a torque wrench to provide a power ratio and to increase the torque of the wrench.
Alternate Parts: 850367, TM2000, 5120-00-085-5019, 00-085-5019, 5120000855019, 000855019
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-085-5019 | 28119 ( MULTIPLIER, TORQUE WRENCH ) |

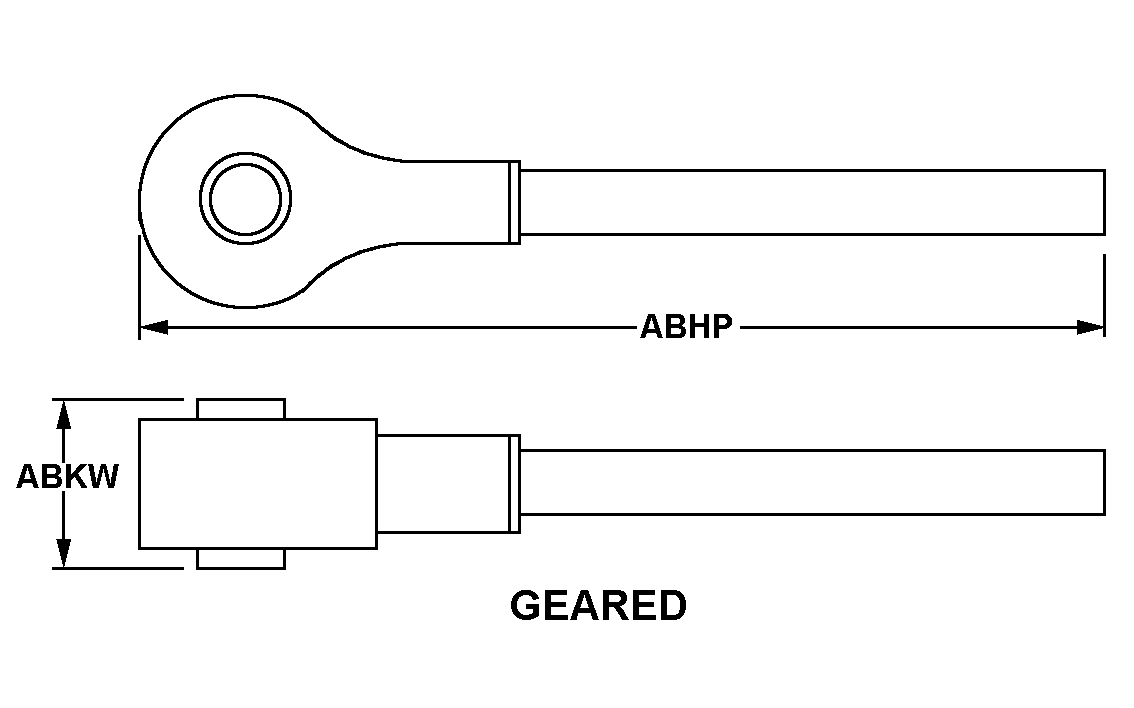

REFERENCE DRAWINGS & PICTURES
GEARED
Cross Reference | NSN 5120-00-085-5019
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 850367 | 64334 | RYESON CORPORATIONDBA STURTEVANT RICHMONT TORQUE |
| TM2000 | 64334 | RYESON CORPORATIONDBA STURTEVANT RICHMONT TORQUE |
Technical Data | NSN 5120-00-085-5019
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | GEARED |
| OVERALL LENGTH | 26.000 INCHES NOMINAL |
| GEAR RATIO | 4 TO 1 |
| TORQUE CAPACITY | 2000.0 FOOT-POUNDS MAXIMUM |
