Part Details | SPANNER WRENCH
5120-00-095-2921 A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG.
Alternate Parts: PWA2956, 5120-00-095-2921, 00-095-2921, 5120000952921, 000952921
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-095-2921 | 03476 ( WRENCH, SPANNER ) |
REFERENCE DRAWINGS & PICTURES

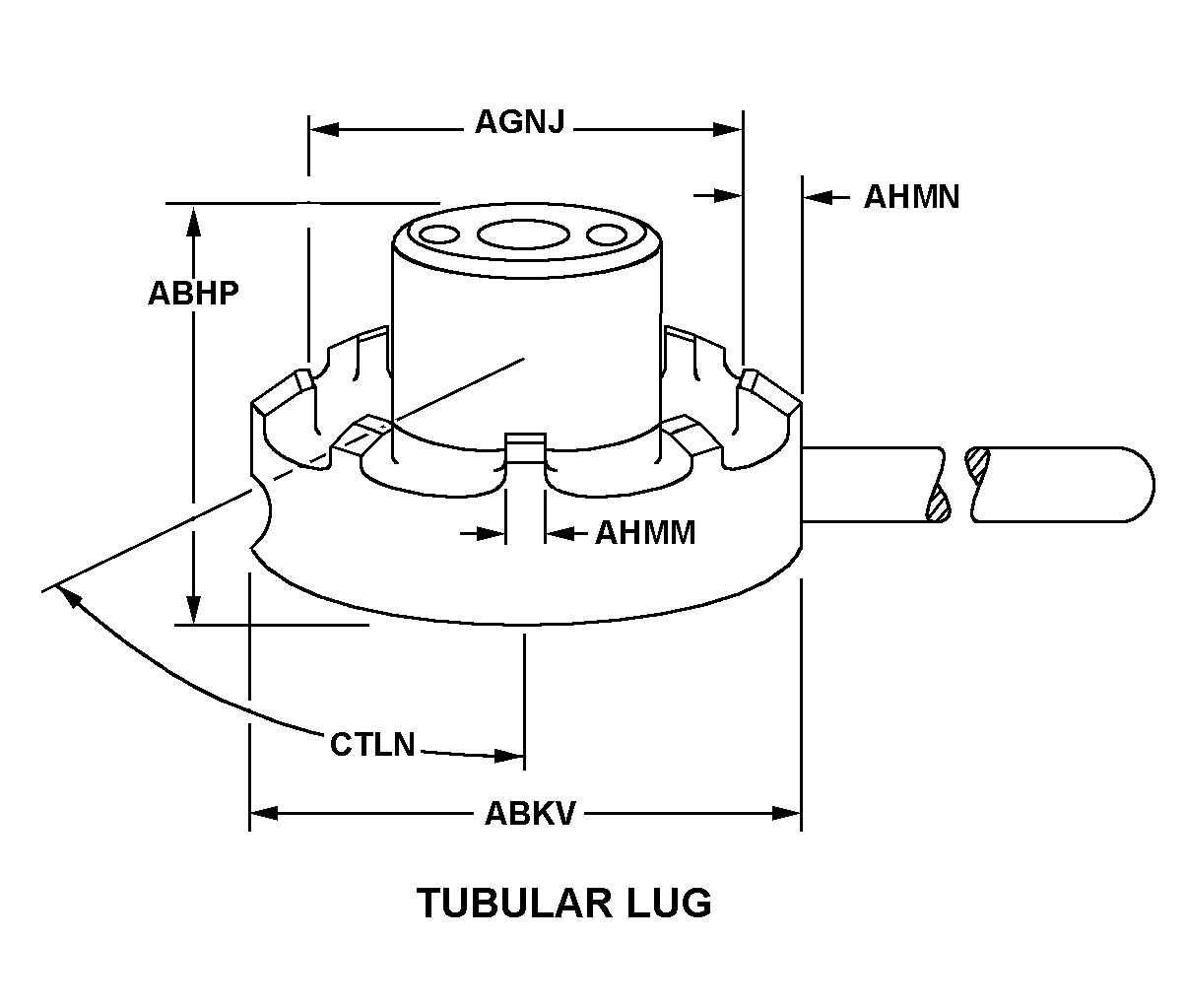

TUBULAR LUG
Cross Reference | NSN 5120-00-095-2921
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| PWA2956 | 77445 | UNITED TECHNOLOGIES CORPORATIONDBA PRATT WHITNEY-SPARE PARTS |
Technical Data | NSN 5120-00-095-2921
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | TUBULAR LUG |
| OVERALL LENGTH | 2.375 INCHES NOMINAL |
| OUTSIDE DIAMETER | 1.250 INCHES NOMINAL |
| OPENING DIAMETER | 0.500 INCHES NOMINAL |
| LUG WIDTH | 0.125 INCHES NOMINAL |
| LUG THICKNESS | 0.109 INCHES NOMINAL |
| ANGLE BETWEEN LUGS | 60.0 DEGREES NOMINAL |
| FEATURES PROVIDED | REMOVABLE HANDLE |
