NSN 5120-00-095-2983

Part Details | FACE SPANNER WRENCH SOCKET

5120-00-095-2983 An item designed to be driven by an external or internal drive. It has a face type spanner end.

Alternate Parts: PWA3418, 5120-00-095-2983, 00-095-2983, 5120000952983, 000952983

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
51JAN 01, 196300-095-298303543 ( SOCKET, WRENCH, FACE SPANNER )

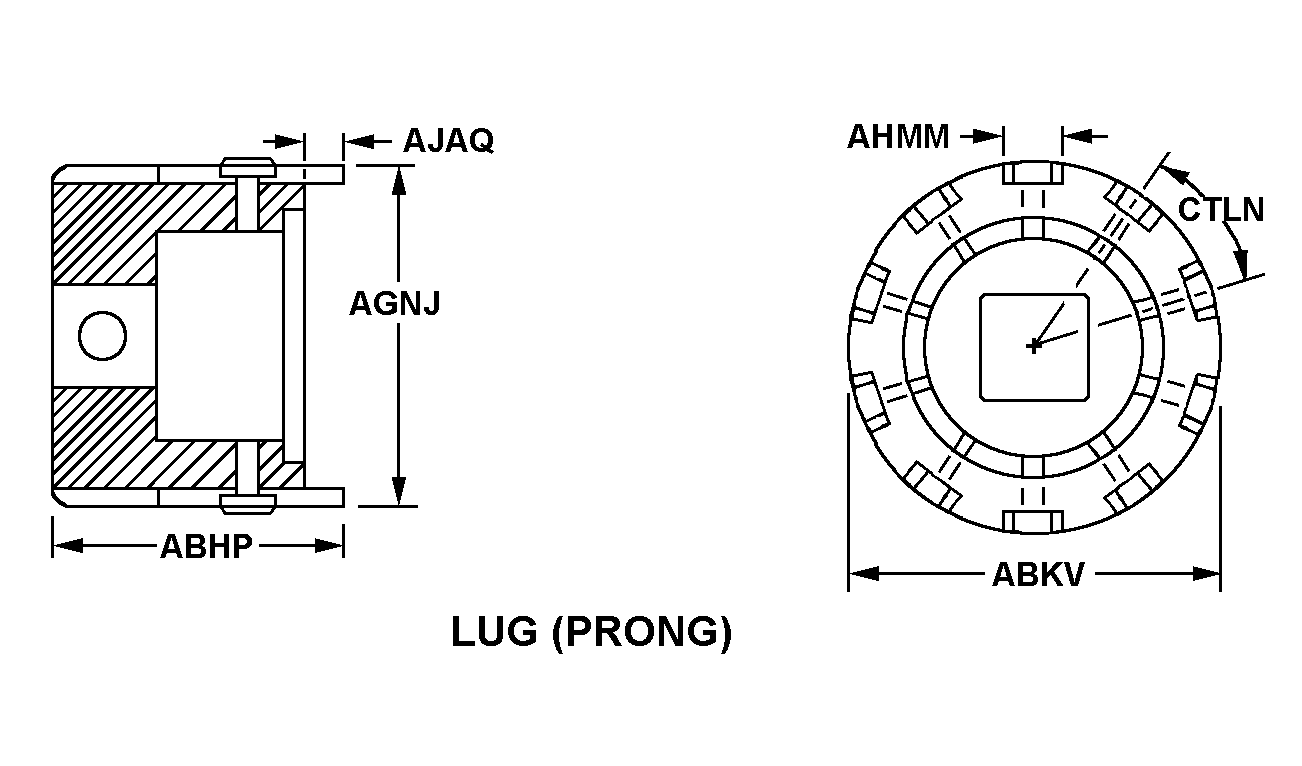

REFERENCE DRAWINGS & PICTURES

LUG

Cross Reference | NSN 5120-00-095-2983
Part Number Cage Code Manufacturer
PWA341877445UNITED TECHNOLOGIES CORPORATIONDBA PRATT WHITNEY-SPARE PARTS
Technical Data | NSN 5120-00-095-2983
Characteristic Specifications
STYLE DESIGNATOR LUG
OVERALL LENGTH0.813 INCHES NOMINAL
OUTSIDE DIAMETER1.000 INCHES NOMINAL
OPENING DIAMETER0.748 INCHES NOMINAL
LUG WIDTH0.125 INCHES NOMINAL
LUG LENGTH0.313 INCHES NOMINAL
ANGLE BETWEEN LUGS90.0 DEGREES NOMINAL
