Part Details | OFFSET SCREWDRIVER
5120-00-096-0998
Alternate Parts: QB723881, QB72388-1, QB723881, QB72388-1, 5120-00-096-0998, 00-096-0998, 5120000960998, 000960998
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-096-0998 | 03502 ( SCREWDRIVER, OFFSET ) |
REFERENCE DRAWINGS & PICTURES

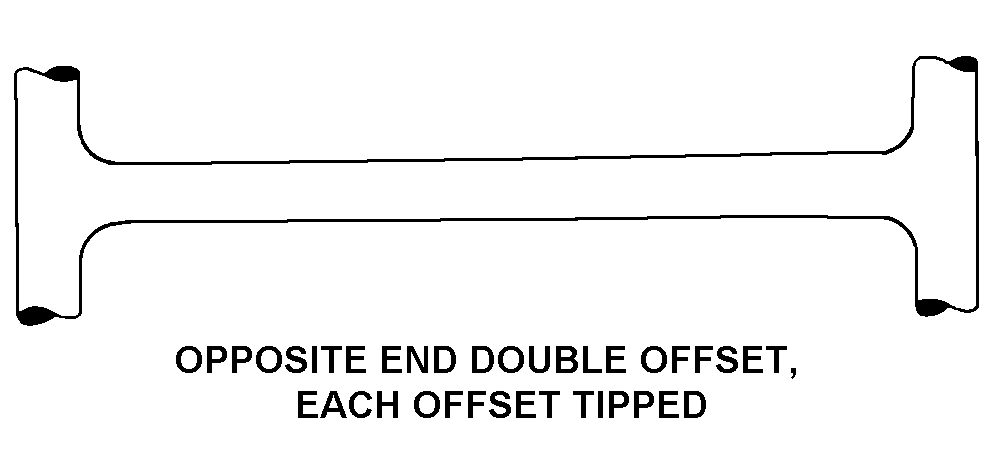

OPPOSITE END DOUBLE OFFSET, EACH OFFSET TIPPED
Cross Reference | NSN 5120-00-096-0998
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| QB72388-1 | 19315 | HONEYWELL INTL INC DEFENSE AVIONICSSYSTEMS FORMER BENDIX NAVIGATION AND |
| QB72388-1 | 55974 | HONEYWELL INTL INCDEFENSE AVIONICS SYSTEMS |
Technical Data | NSN 5120-00-096-0998
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | OPPOSITE END DOUBLE OFFSET, EACH OFFSET TIPPED |
| TIP TYPE | FLAT TIP, PARALLEL TO LONGITUDINAL AXIS OF BODY AND FLAT TIP, 30 DEG ANGLE TO LONGITUDINAL AXIS OF BODY |
| TIP SIZE DESIGNATION | 0.016 |
| OVERALL LENGTH | 4.000 INCHES NOMINAL |
