Part Details | SPANNER WRENCH
5120-00-140-8970 A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG.
Alternate Parts: 27127403, 5120-00-140-8970, 00-140-8970, 5120001408970, 001408970
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | SEP 10, 1971 | 00-140-8970 | 03476 ( WRENCH, SPANNER ) |

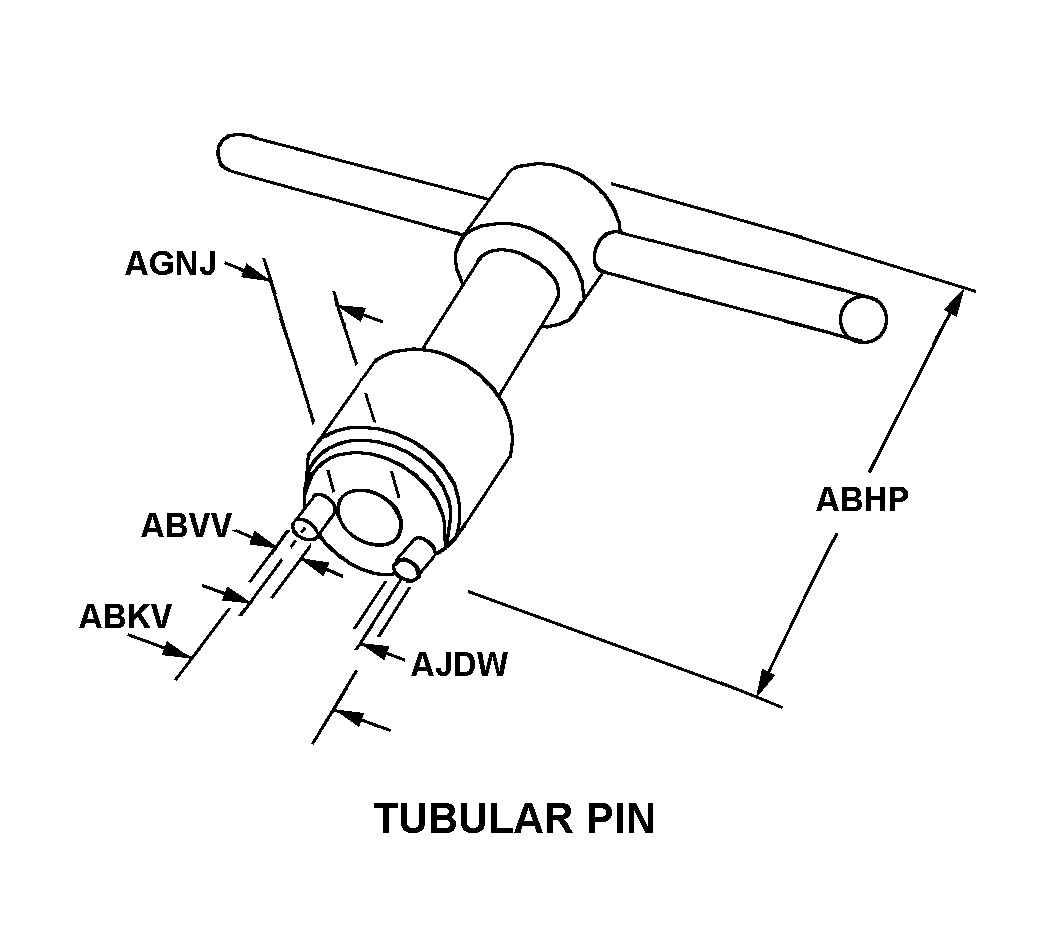

REFERENCE DRAWINGS & PICTURES
TUBULAR PIN
Cross Reference | NSN 5120-00-140-8970
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 27127403 | 99167 | HAMILTON SUNDSTRAND CORPORATION |
Technical Data | NSN 5120-00-140-8970
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | TUBULAR PIN |
| OUTSIDE DIAMETER | 0.740 INCHES NOMINAL |
| PIN DIAMETER | 0.084 INCHES NOMINAL |
| OPENING DIAMETER | 0.280 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN PINS | 0.625 INCHES NOMINAL |
| FEATURES PROVIDED | REMOVABLE HANDLE |
