Part Details | SPANNER WRENCH
5120-00-142-5375 A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG.
Alternate Parts: T519, 1425375, 142-5375, 5120-00-142-5375, 00-142-5375, 5120001425375, 001425375
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JUL 01, 1969 | 00-142-5375 | 03476 ( WRENCH, SPANNER ) |
REFERENCE DRAWINGS & PICTURES

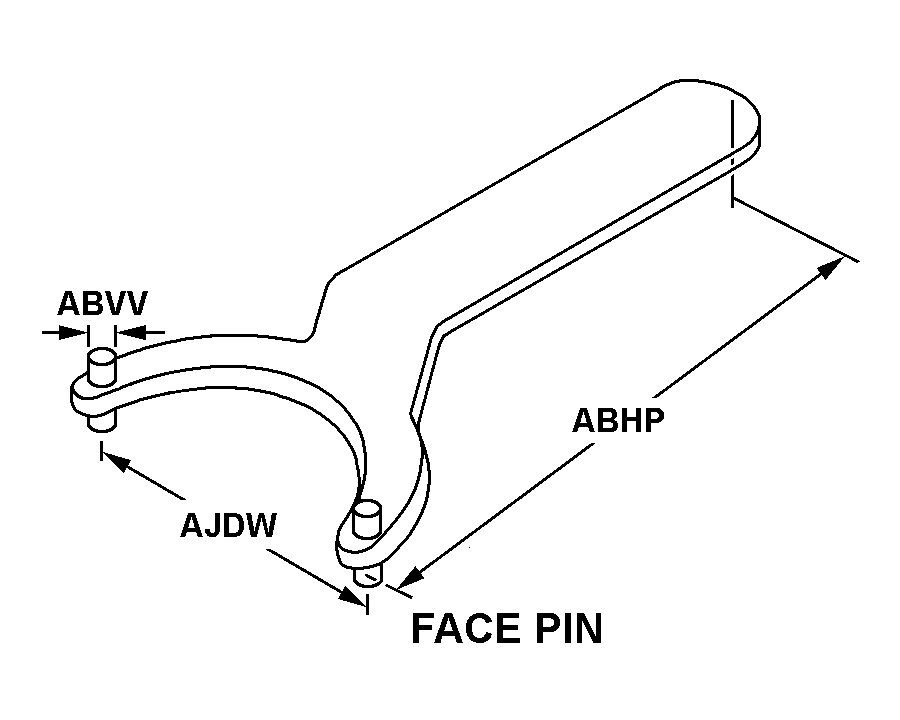

FACE PIN
Cross Reference | NSN 5120-00-142-5375
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| T519 | 06987 | FL AEROSPACE CORPJANITROL AERO DIV/GENERAL DESIGN |
| 142-5375 | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
Technical Data | NSN 5120-00-142-5375
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | FACE PIN |
| OVERALL LENGTH | 3.380 INCHES NOMINAL |
| PIN DIAMETER | 0.062 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN PINS | 0.496 INCHES MINIMUM AND 0.504 INCHES MAXIMUM |
| SPECIAL FEATURES | 30.0 DEG ANGLE OF HEAD |
