Part Details | SPANNER WRENCH
5120-00-212-3308 A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG.
Alternate Parts: QB707501, QB70750-1, QB707501, QB70750-1, QB707501, QB70750-1, 5120-00-212-3308, 00-212-3308, 5120002123308, 002123308
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1961 | 00-212-3308 | 03476 ( WRENCH, SPANNER ) |
REFERENCE DRAWINGS & PICTURES

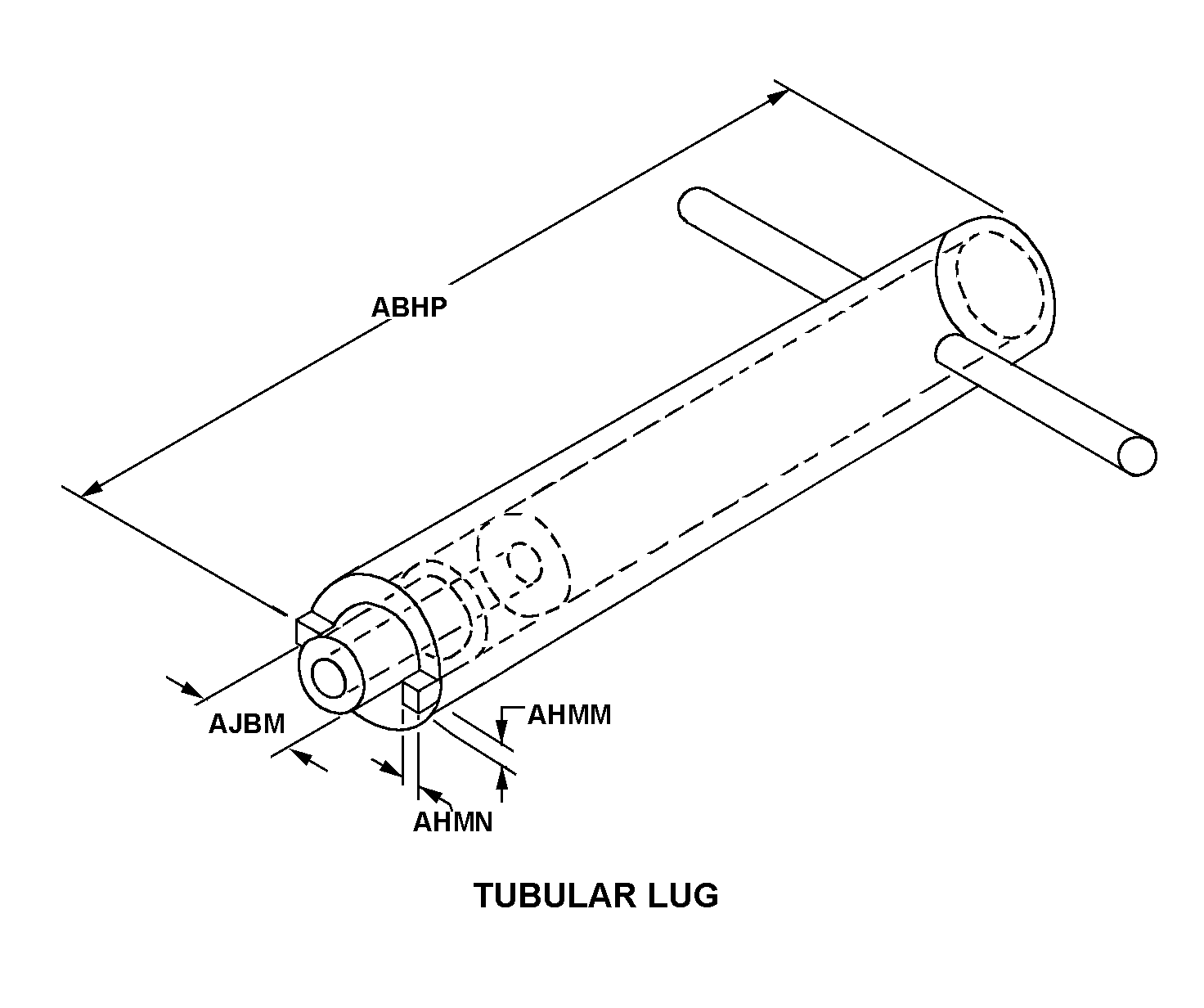

TUBULAR LUG
Cross Reference | NSN 5120-00-212-3308
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| QB70750-1 | 06840 | BENDIX CORP THE |
| QB70750-1 | 19315 | HONEYWELL INTL INC DEFENSE AVIONICSSYSTEMS FORMER BENDIX NAVIGATION AND |
| QB70750-1 | 55974 | HONEYWELL INTL INCDEFENSE AVIONICS SYSTEMS |
Technical Data | NSN 5120-00-212-3308
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | TUBULAR LUG |
| OVERALL LENGTH | 3.500 INCHES NOMINAL |
| LUG WIDTH | 0.050 INCHES MINIMUM AND 0.055 INCHES MAXIMUM |
| LUG THICKNESS | 0.047 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN LUGS | 0.442 INCHES NOMINAL |
| FEATURES PROVIDED | REMOVABLE HANDLE |
| SPECIAL FEATURES | 2-1/2 IN. HANDLE LG; 0.296 IN. DIA X 3/4 IN. LG PILOT |
