Part Details | SPANNER WRENCH
5120-00-347-2329 A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG.
Alternate Parts: WR213, 5120-00-347-2329, 00-347-2329, 5120003472329, 003472329
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-347-2329 | 03476 ( WRENCH, SPANNER ) |
REFERENCE DRAWINGS & PICTURES

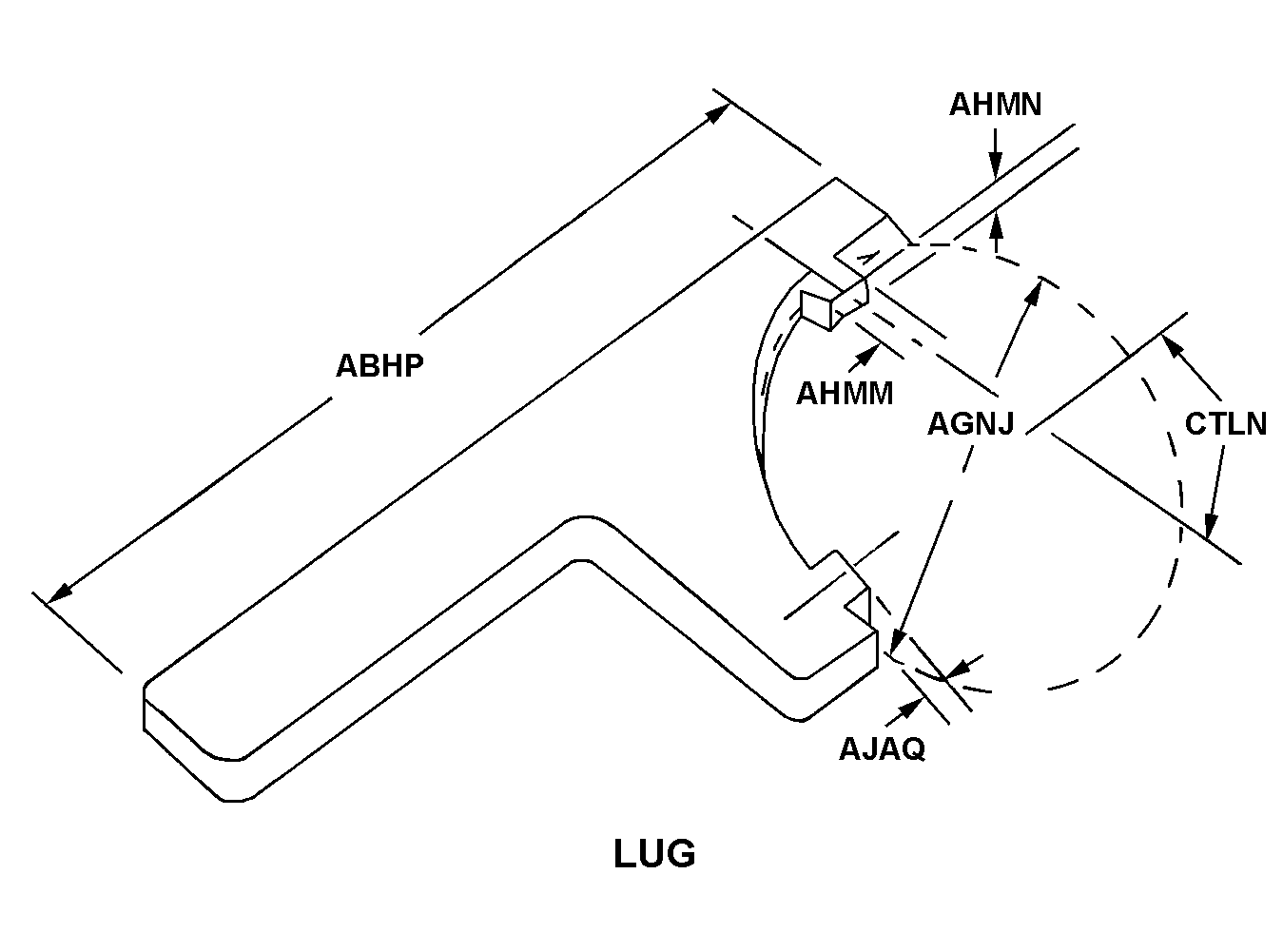

LUG
Cross Reference | NSN 5120-00-347-2329
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| WR213 | 17576 | GOODRICH CORPDBA GOODRICH CORP |
Technical Data | NSN 5120-00-347-2329
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | LUG |
| OVERALL LENGTH | 10.750 INCHES NOMINAL |
| OPENING DIAMETER | 7.156 INCHES NOMINAL |
| LUG WIDTH | 0.375 INCHES NOMINAL |
| LUG THICKNESS | 0.470 INCHES NOMINAL |
| ANGLE BETWEEN LUGS | 90.0 DEGREES NOMINAL |
| SPECIAL FEATURES | 0.250 IN. NOM DIA HOLE THROUGH HANDLE LOCATED ON CENTERLINE 1.000 IN. FROM END |
