Part Details | SPANNER WRENCH
5120-00-440-5420 A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG.
Alternate Parts: 6797755, 6797755, 5120-00-440-5420, 00-440-5420, 5120004405420, 004405420
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-440-5420 | 03476 ( WRENCH, SPANNER ) |

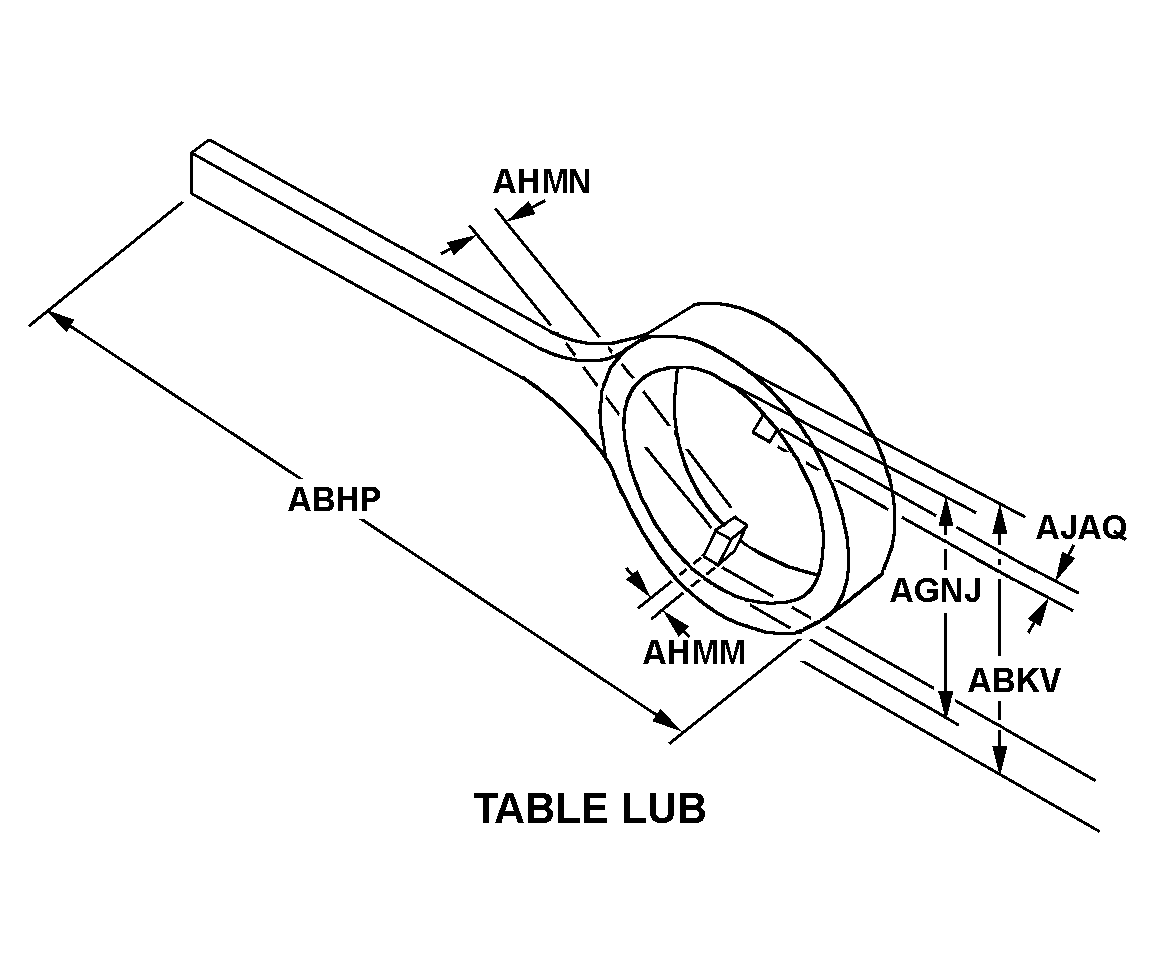

REFERENCE DRAWINGS & PICTURES
TABLE LUG
Cross Reference | NSN 5120-00-440-5420
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6797755 | 73342 | ALLISON TRANSMISSION, INC. |
| 6797755 | 24617 | GENERAL MOTORS CORP |
Technical Data | NSN 5120-00-440-5420
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | TABLE LUG |
| OVERALL LENGTH | 11.625 INCHES NOMINAL |
| OUTSIDE DIAMETER | 3.250 INCHES NOMINAL |
| OPENING DIAMETER | 1.843 INCHES NOMINAL |
| LUG WIDTH | 0.112 INCHES NOMINAL |
| LUG THICKNESS | 0.187 INCHES NOMINAL |
