Part Details | SPANNER WRENCH
5120-00-473-7789 A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG.
Alternate Parts: 6296142, 5120-00-473-7789, 00-473-7789, 5120004737789, 004737789
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-473-7789 | 03476 ( WRENCH, SPANNER ) |
REFERENCE DRAWINGS & PICTURES

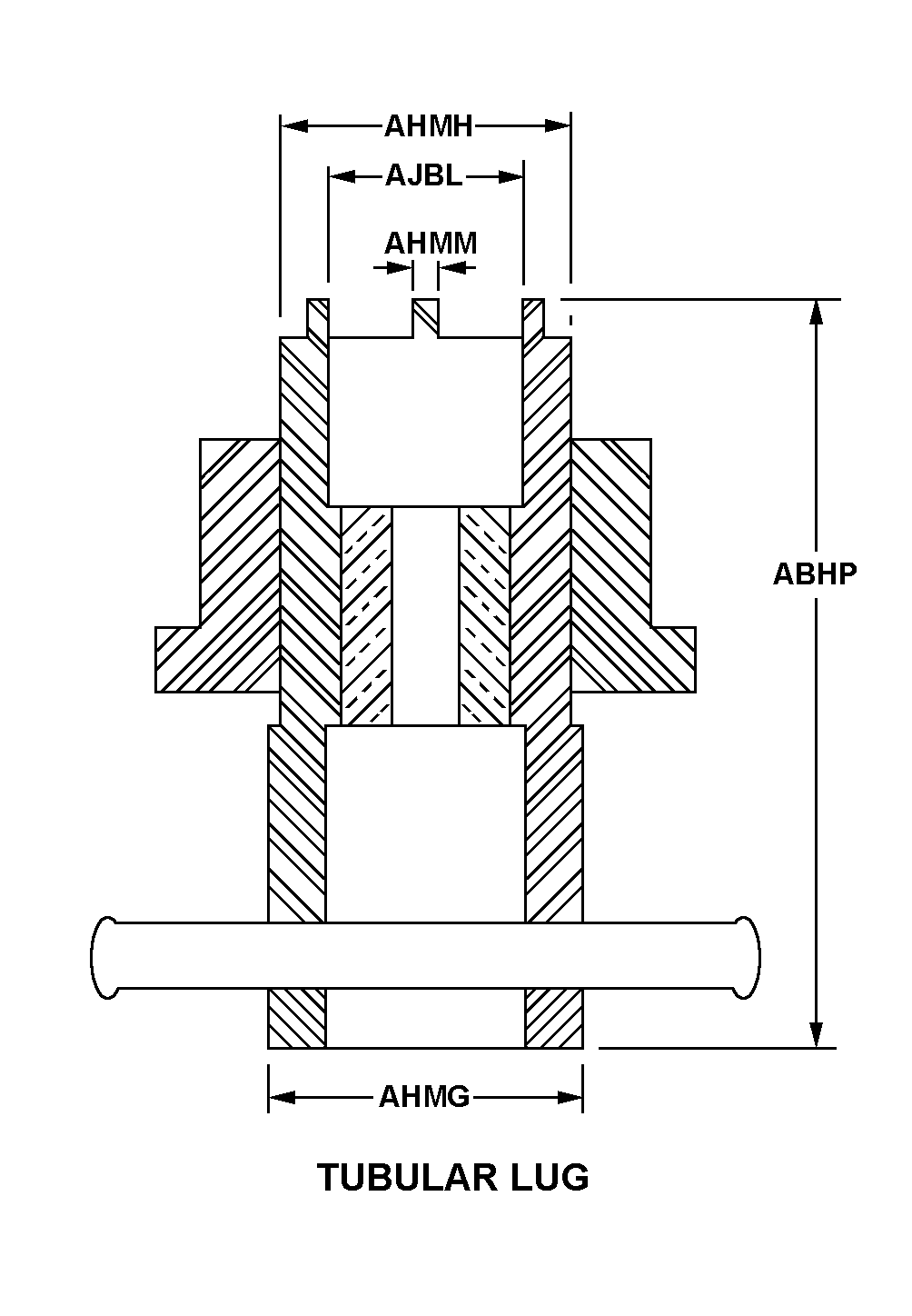

TUBULAR LUG
Cross Reference | NSN 5120-00-473-7789
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6296142 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 5120-00-473-7789
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | TUBULAR LUG |
| OVERALL LENGTH | 4.000 INCHES NOMINAL |
| LARGE END OUTSIDE DIAMETER | 3.944 INCHES NOMINAL |
| SMALL END OUTSIDE DIAMETER | 3.562 INCHES NOMINAL |
| LUG WIDTH | 1.187 INCHES NOMINAL |
| SMALL END OPENING DIAMETER | 2.937 INCHES NOMINAL |
