Part Details | TWIST DRILL
5133-01-208-9589 An end cutting tool having two or more cutting edges, and having helical flutes or grooves adjacent thereto for the admission of coolant and the ejection of cuttings or chips. It is used for drilling holes in various materials. Excludes DRILL, MASONRY (as modified); and DRILL,TWIST, BONE. See also DRILL, PIVOT, JEWELER'S and DRILL, HARDENED STEEL, CARBIDE TIPPED.
Alternate Parts: 15665, 15-665, 5133-01-208-9589, 01-208-9589, 5133012089589, 012089589
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | MAY 21, 1985 | 01-208-9589 | 05237 ( DRILL, TWIST ) |
REFERENCE DRAWINGS & PICTURES
FLAT ROUND

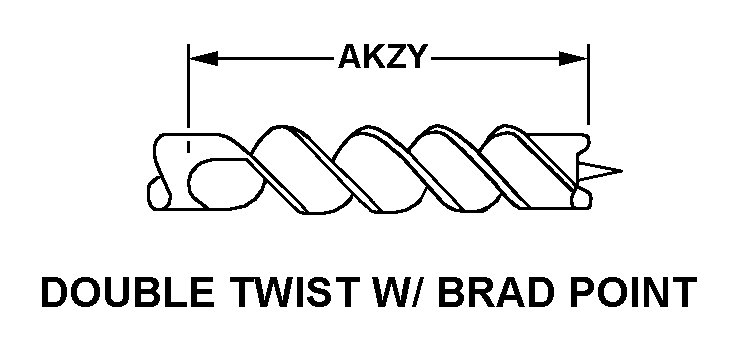

DOUBLE TWIST W/BRAD POINT
Cross Reference | NSN 5133-01-208-9589
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 15-665 | 83738 | DELTA INTL MACHINERY CORP |
Technical Data | NSN 5133-01-208-9589
| Characteristic | Specifications |
|---|---|
| CUTTING END STYLE | DOUBLE TWIST W/BRAD POINT |
| TWIST LENGTH | 1.500 INCHES NOMINAL |
| SHANK STYLE | FLAT ROUND |
| SHANK DIAMETER | 0.125 INCHES NOMINAL |
